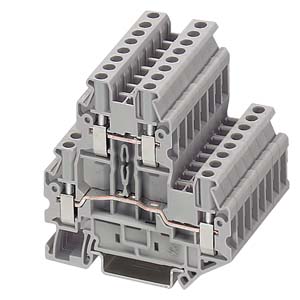

ENG: 8WH Two-Tier Terminals

	8WH1 020-0AF00 8WH1 020-0AF01	8WH1 020-0AG00 8WH1 020-0AG01	8WH1 020-0CF07	8WH1 020-0CG07
Dimensions
Width / Length / Cover width in mm	5,2 / 69,9 / 2,2	6,2 / 69,9 / 2,2	5,2 / 69,9 / 2,2	6,2 / 69,9 / 2,2
Height (NS 35/7,5 / NS 35/15) in mm	65 / 72,5
Technical specifications according to IEC/ DIN VDE
Max. load current in A / cross-section in mm²	28 / 4	36 / 6	-- / 4	-- / 6
Rated impulse (withstand) voltage in kV / pollution degree	6 kV/3	8kV/3
Rated insulation voltage (working voltage) U_i in V according to IEC 60497-7-1	500	800	--
Overvoltage category / insulating group	III / I
Connection capacity
Flexible with end sleeve, with plastic sleeve in mm²	0,25 ... 2,5	0,25 ... 4	0,25 ... 2,5	0,25 ... 4
Flexible with end sleeve, without plastic sleeve in mm²	0,25 ... 2,5	0,25 ... 4	0,25 ... 2,5	0,25 ... 4
Flexible with two-wire connection end sleeve, with plastic sleeve in mm²	0,5 ... 1,5	0,5 ... 2,5	0,5 ... 1,5	0,5 ... 2,5
rigid in mm²	0,14 ... 4	0,14 ... 6	0,14 ... 4	0,14 ... 6
Stripped length in mm	9
Molded plastic type	PA
Flammability class according to UL 94	V0
Approval data (UL/CUL and CSA)
Rated voltage / rated current / conductor sizes
UL/CUL: in V/A / AWG	600 / 20 / 26-12	600 / 30/ 26-12	-- / -- / 26-12	-- / -- / 26-10
CSA: in V/A / AWG	-- / -- / --

	8WH1 025-0AF00	8WH1 025-0AG00
Dimensions
Width / Length / Cover width in mm	6,2 / 69,9 / 2,2
Height (NS 35/7,5 / NS 35/15) in mm	65 / 72,5
Technical specifications according to IEC/ DIN VDE
Max. load current in A / cross-section in mm²	28 / 4	36 / 6
Rated impulse (withstand) voltage in kV / pollution degree	8kV/3	8kV/3
Rated insulation voltage (working voltage) U_i in V according to IEC 60497-7-1	500
Overvoltage category / insulating group	III / I
Connection capacity
Flexible with end sleeve, with plastic sleeve in mm²	0,25 ... 2,5	0,25 ... 4
Flexible with end sleeve, without plastic sleeve in mm²	0,25 ... 2,5	0,25 ... 4
Flexible with two-wire connection end sleeve, with plastic sleeve in mm²	0,5 ... 1,5	0,5 ... 2,5
rigid in mm²	0,14 ... 4	0,14 ... 6
Stripped length in mm	9
Molded plastic type	PA
Flammability class according to UL 94	V0
Approval data (UL/CUL and CSA)
Rated voltage / rated current / conductor sizes
UL/CUL: in V/A / AWG	600 / 20 / 26-12	600 / 30 / 26-10
CSA: in V/A / AWG	-- / -- / --
