Terminal size 4 mm²

8WH1 000-6AG00

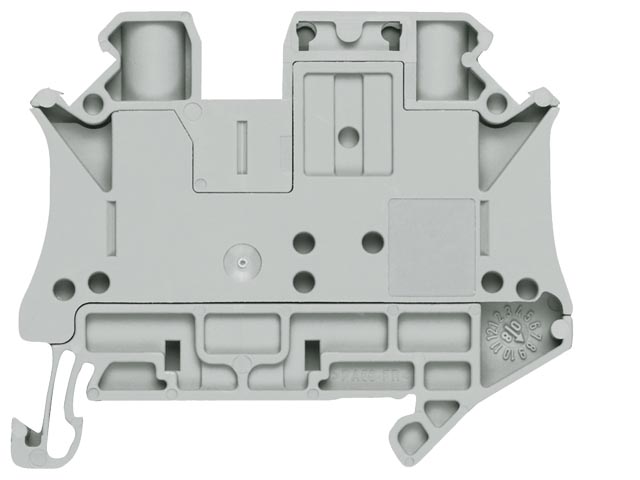

Isolating terminals, terminal size 4 mm²

• _CUR_US
• CSA
• Terminal width 6.2 mm
• I _max = 20 A
• U _max = 400 V
• AWG 26-10
• Connection capacity, one conductor

• rigid 0.14... 6 mm²
• Flexible 0.14... 6 mm²

• Connection capacity, two conductors
  • rigid 0.14... 1.5 mm²

• Flexible 0.14... 1.5 mm²

• Enclosed on both sides
• Gray

8WH1 000-6AG00

Terminal size 6 mm²

8WH1 000-6AH00

Isolating terminals, terminal size 6 mm²

• _CUR_US
• Terminal width 8,2 mm
• I _max = 20 A
• U _max = 500 V
• AWG 24-8
• Connection capacity, one conductor

• rigid 0.2... 10 mm²
• Flexible 0.2... 10 mm²

• Connection capacity, two conductors
  • rigid 0.2... 2.5 mm²

• Flexible 0.2... 2.5 mm²

• Enclosed on both sides
• Gray

8WH1 000-6AH00
