8WH diode terminals can be used to implement many different switching tasks. The 1N 4007 diode is soldered in from left to right or vice versa as required. The double bridge shaft allows for combination with all standard and function terminals. The 8WH diode terminals have the same contour as the 8WH isolating, isolating blade and fuse terminals. This provides the advantage of being able to put inscriptions on all clamping points. Sure electrical and mechanical contact with the mounting rail is assured by simply snapping the terminals onto the rail.
|
Version |
Order No. |
||
|---|---|---|---|
|
Terminal size 4 mm² |
|||
8WH1 000-6KG00 |

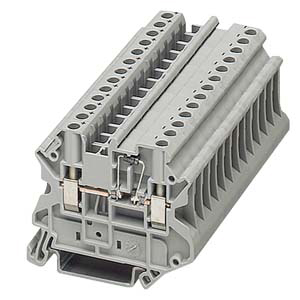

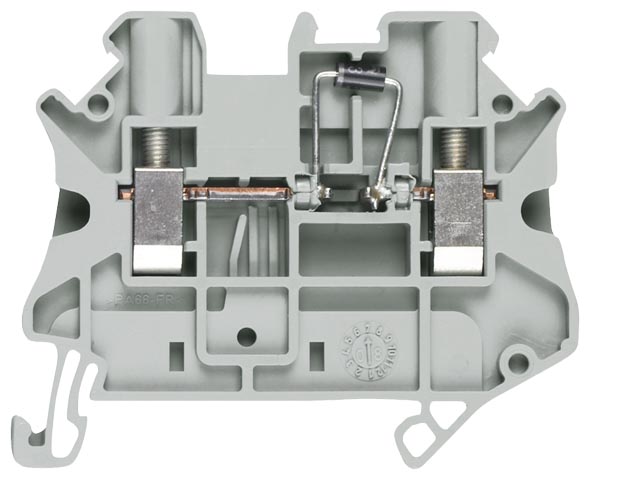

Diode terminals, terminal size 4mm²
|
||
|
Versions |
|||
|
8WH1 000-6LG00 |
||
|
8WH1 000-6KG00 |
||
|
Accessories |
Section |
||
|
Accessories |
8WH9 000-2PA00 |
|
|
dto. |
8WH9 063-5BA06 |
|
|
Accessories |
|||
8WH9 000-2PA00 |
Cover, for diode terminals, for terminal size 2.5 to 4 mm²
|
8WH9 000-2PA00 |
|
|
Warning covers, for terminal size 4 mm²
|
8WH9 063-5BA06 |
||
