ENG: 8WH Two-Tier Terminals

The compact 8WH two-tier terminal is available in the nominal cross-sections 2.5 and 4 mm2. With the potentials routed in a 5.2 mm or 6.2 mm grid through two tiers, the compact two-tier terminals require 50 % less space in the control cabinet. Two integral bridge slots are also available here and two facilities for large inscriptions on all terminals.

With 8WH1 025 two-tier terminals the upper and lower level are connected.

Floor transfer on the 8WH two-tier terminals allows for open access to the lower levels on full wiring. Spacer plates allow all to compensate for floor transfers in case other terminals are mounted.



Version

Order No.

Terminal size 2.5 mm²

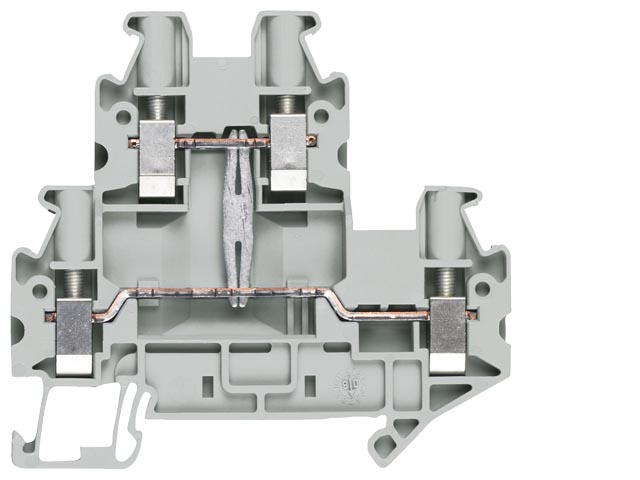

8WH1 020-0AF00

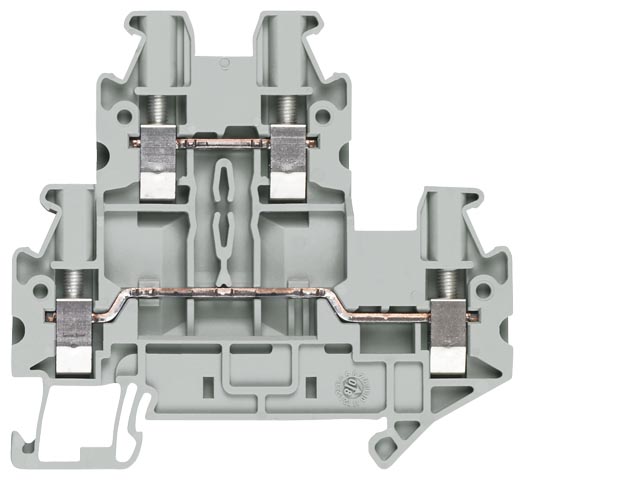

8WH1 025-0AF00

Two-tier terminals, terminal size 2.5 mm²

  • CURUS
  • CSA
  • Terminal width 5.2 mm
  • I max = 28 A
  • U max = 500 V
  • AWG 26-12
  • Connection capacity, one conductor
  • rigid 0.14... 4 mm²
  • Flexible 0.14... 4 mm²
  • Connection capacity, two conductors
    • rigid 0.14... 1.5 mm²
  • Flexible 0.14... 1.5 mm²


Versions


  • Gray

  • Without equipotential bonding

8WH1 020-0AF00

  • With equipotential bonding

8WH1 025-0AF00

  • Blue

  • Without equipotential bonding

8WH1 020-0AF01

Accessories

Section


  • Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

Accessories

8WH9 000-1QA00

  • Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

dto.

8WH9 160-0AA00

  • Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

dto.

8WH9 070-6FA00

8WH1 020-0CF07

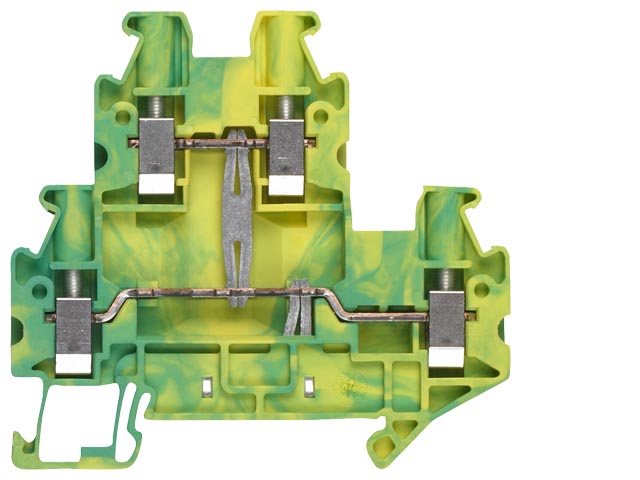

PE two-tier terminals, terminal size 2.5 mm²

  • CURUS
  • CSA
  • Terminal width 5.2 mm
  • AWG 26-12
  • Connection capacity, one conductor
  • rigid 0.14... 4 mm²
  • Flexible 0.14... 4 mm²
  • Connection capacity, two conductors
    • rigid 0.14... 1.5 mm²
  • Flexible 0.14... 1.5 mm²
  • Green-yellow

8WH1 020-0CF07

Accessories

Section


  • Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

Accessories

8WH9 000-1QA00

  • Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

dto.

8WH9 160-0AA00

  • Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

dto.

8WH9 070-6FA00

Terminal size 4 mm²



8WH1 020-0AG00

Two-tier terminals, terminal size 4 mm²

  • CURUS
  • CSA
  • Terminal width 6.2 mm
  • I max = 36 A
  • U max = 800 V
  • AWG 26-10
  • Connection capacity, one conductor
  • rigid 0.14... 6 mm²
  • Flexible 0.14... 6 mm²
  • Connection capacity, two conductors
    • rigid 0.14... 1.5 mm²
  • Flexible 0.14... 1.5 mm²


Versions


  • Gray

  • Without equipotential bonding

8WH1 020-0AG00

  • With equipotential bonding

8WH1 025-0AG00

  • Blue

  • Without equipotential bonding

8WH1 020-0AG01

Accessories

Section


  • Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

Accessories

8WH9 000-1QA00

  • Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

dto.

8WH9 160-0AA00

  • Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

dto.

8WH9 070-6FA00

8WH1 020-0CG07

PE two-tier terminals, terminal size 4 mm²

  • CURUS
  • CSA
  • Terminal width 6.2 mm
  • AWG 26-10
  • Connection capacity, one conductor
  • rigid 0.14... 6 mm²
  • Flexible 0.14... 6 mm²
  • Connection capacity, two conductors
    • rigid 0.14... 1.5 mm²
  • Flexible 0.14... 1.5 mm²
  • Green-yellow

8WH1 020-0CG07

Accessories

Section


  • Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

Accessories

8WH9 000-1QA00

  • Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

dto.

8WH9 160-0AA00

  • Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

dto.

8WH9 070-6FA00

Accessories



8WH9 000-1QA00

Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

  • Width 2.2 mm
  • Gray

8WH9 000-1QA00

8WH9 160-0AA00

Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

  • compensates for floor transfers in case other terminals are mounted.
  • 2.5 mm thick.
  • Gray

8WH9 160-0AA00

8WH9 070-6FA00

Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

  • for visual and electrical separation of terminal groups
  • 2 mm thick.
  • Gray

8WH9 070-6FA00
