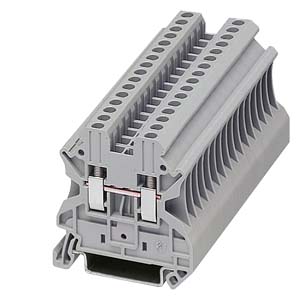

ENG: 8WH Through-Type Terminals

8WH through-type terminals are characterized by their compact design and optimum handling. They are available in conductor cross-section areas from 2.5 to 35 mm2 and are inscribable with labels. The double bridge slot enables individual chain bridging with connecting combs. Corresponding accessories are available for testing and labeling. Sure electrical and mechanical contact with the mounting rail is assured by simply snapping the terminals onto the rail.



Version

Order No.

Terminal size 2.5 mm²



8WH1 000-0AF00

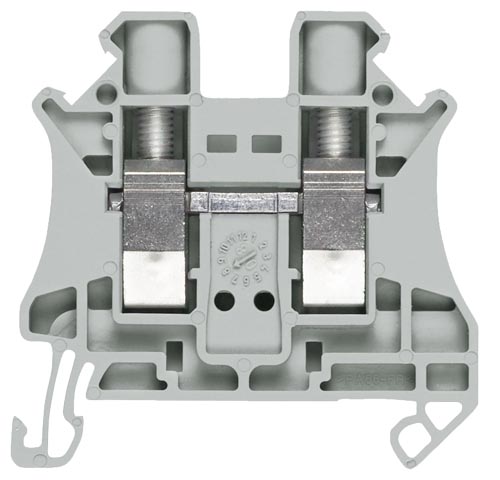

Through-type terminals, terminal size 2.5 mm²

  • CURUS
  • CSA
  • Terminal width 5.2 mm
  • I max = 32 A
  • U max = 1000 V
  • AWG 26-12
  • Connection capacity, one conductor
    • rigid 0.14... 4 mm²
    • Flexible 0.14... 4 mm²
  • Connection capacity, two conductors
    • rigid 0.14... 1.5 mm²
    • Flexible 0.14... 1.5 mm²


Versions


  • Gray

8WH1 000-0AF00

  • Blue

8WH1 000-0AF01

Accessories

Section


  • Cover, for through-type terminals, for terminal size 2.5 to 10 mm²

Accessories

8WH9 000-1PA00

  • Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²

dto.

8WH9 070-6BA00

  • Warning covers, for terminal size 2.5 mm²

dto.

8WH9 060-5BA06

8WH1 000-0CF07

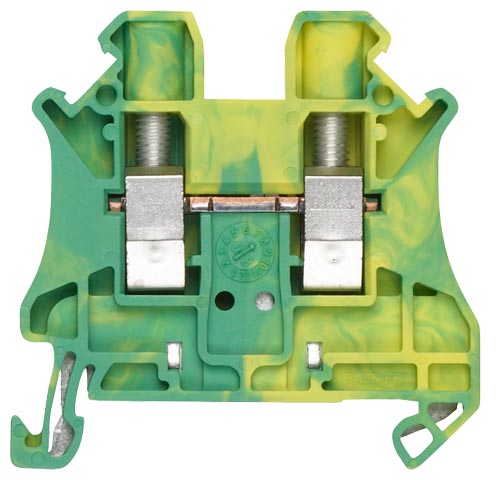

Through-type PE terminals, terminal size 2.5 mm²

  • CURUS
  • CSA
  • Terminal width 5.2 mm
  • AWG 26-12
  • Connection capacity, one conductor
    • rigid 0.14... 4 mm²
    • Flexible 0.14... 4 mm²
  • Connection capacity, two conductors
    • rigid 0.14... 1.5 mm²
  • Flexible 0.14... 1.5 mm²
  • Green-yellow

8WH1 000-0CF07

Accessories

Section


  • Cover, for through-type terminals, for terminal size 2.5 to 10 mm²

Accessories

8WH9 000-1PA00

  • Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²

dto.

8WH9 070-6BA00

  • Warning covers, for terminal size 2.5 mm²

dto.

8WH9 060-5BA06

Terminal size 4 mm²



8WH1 000-0AG00

Through-type terminals, terminal size 4 mm²

  • CURUS
  • CSA
  • Terminal width 6.2 mm
  • I max = 41 A
  • U max = 1000 V
  • AWG 26-10
  • Connection capacity, one conductor
    • rigid 0.14... 6 mm²
    • Flexible 0.14... 6 mm²
  • Connection capacity, two conductors
    • rigid 0.14... 1.5 mm²
    • Flexible 0.14... 1.5 mm²


Versions


  • Gray

8WH1 000-0AG00

  • Blue

8WH1 000-0AG01

Accessories

Section


  • Cover, for through-type terminals, for terminal size 2.5 to 10 mm²

Accessories

8WH9 000-1PA00

  • Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²

dto.

8WH9 070-6BA00

  • Warning covers, for terminal size 4 mm²

dto.

8WH9 063-5BA06

8WH1 000-0CG07

Through-type PE terminals, terminal size 4 mm²

  • CURUS
  • CSA
  • Terminal width 6.2 mm
  • AWG 26-10
  • Connection capacity, one conductor
    • rigid 0.14... 6 mm²
    • Flexible 0.14... 6 mm²
  • Connection capacity, two conductors
    • rigid 0.14... 1.5 mm²
  • Flexible 0.14... 1.5 mm²
  • Green-yellow

8WH1 000-0CG07

Accessories

Section


  • Cover, for through-type terminals, for terminal size 2.5 to 10 mm²

Accessories

8WH9 000-1PA00

  • Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²

dto.

8WH9 070-6BA00

  • Warning covers, for terminal size 4 mm²

dto.

8WH9 063-5BA06

Terminal size 6 mm²



8WH1 000-0AH00

Through-type terminals, terminal size 6 mm²

  • CURUS
  • CSA
  • Terminal width 8,2 mm
  • I max = 57 A
  • U max = 1000 V
  • AWG 24-8
  • Connection capacity, one conductor
    • rigid 0.2... 10 mm²
    • Flexible 0.2... 10 mm²
  • Connection capacity, two conductors
    • rigid 0.2... 2.5 mm²
    • Flexible 0.2... 2.5 mm²


Versions


  • Gray

8WH1 000-0AH00

  • Blue

8WH1 000-0AH01

Accessories

Section


  • Cover, for through-type terminals, for terminal size 2.5 to 10 mm²

Accessories

8WH9 000-1PA00

  • Reducing bridge, for connecting terminals, from terminal size 6 mm2 to 2.5 or 4 mm2

  • From screw to screw

dto.

8WH9 002-8AC10

  • From screw to spring

dto.

8WH9 002-8BC10

  • Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²

dto.

8WH9 070-6BA00

  • Warning covers, for terminal size 6 mm²

dto.

8WH9 064-5BA06

8WH1 000-0CH07

Through-type PE terminals, terminal size 6 mm²

  • CURUS
  • CSA
  • Terminal width 8,2 mm
  • AWG 24-8
  • Connection capacity, one conductor
    • rigid 0.2... 10 mm²
    • Flexible 0.2... 10 mm²
  • Connection capacity, two conductors
    • rigid 0.2... 2.5 mm²
  • Flexible 0.2... 2.5 mm²
  • Green-yellow

8WH1 000-0CH07

Accessories

Section


  • Cover, for through-type terminals, for terminal size 2.5 to 10 mm²

Accessories

8WH9 000-1PA00

  • Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²

dto.

8WH9 070-6BA00

  • Warning covers, for terminal size 6 mm²

dto.

8WH9 064-5BA06

Terminal size 10 mm²



8WH1 000-0AJ00

Through-type terminals, terminal size 10 mm²

  • CURUS
  • CSA
  • Terminal width 10,2 mm
  • I max = 76 A
  • U max = 1000 V
  • AWG 20-6
  • Connection capacity, one conductor
    • rigid 5... 16 mm²
    • Flexible 5... 16 mm²
  • Connection capacity, two conductors
    • rigid 5... 4 mm²
    • Flexible 5... 4 mm²


Versions


  • Gray

8WH1 000-0AJ00

  • Blue

8WH1 000-0AJ01

Accessories

Section


  • Cover, for through-type terminals, for terminal size 2.5 to 10 mm²

Accessories

8WH9 000-1PA00

  • Reducing bridge, for connecting terminals, from terminal size 10 mm2 to 2.5 or 4 mm2

  • From screw to screw

dto.

8WH9 002-8CC10

  • From screw to spring

dto.

8WH9 002-8DC10

  • Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²

dto.

8WH9 070-6BA00

  • Warning covers, for terminal size 10 mm²

dto.

8WH9 065-5BA06

8WH1 000-0CJ07

Through-type PE terminals, terminal size 10 mm²

  • CURUS
  • CSA
  • Terminal width 10,2 mm
  • AWG 20-6
  • Connection capacity, one conductor
    • rigid 0.5... 16 mm²
    • Flexible 0.5... 16 mm²
  • Connection capacity, two conductors
    • rigid 0.5... 4 mm²
  • Flexible 0.5... 4 mm²
  • Green-yellow

8WH1 000-0CJ07

Accessories

Section


  • Cover, for through-type terminals, for terminal size 2.5 to 10 mm²

Accessories

8WH9 000-1PA00

  • Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²

dto.

8WH9 070-6BA00

  • Warning covers, for terminal size 10 mm²

dto.

8WH9 065-5BA06

Terminal size 16 mm²



8WH1 000-0AK00

Through-type terminals, terminal size 16 mm²

  • CURUS
  • CSA
  • Terminal width 12,2 mm
  • I max = 101 A
  • U max = 1000 V
  • AWG 16-4
  • Connection capacity, one conductor
    • Rigid 1.5... 25 mm²
    • Flexible 1.5... 25 mm²
  • Connection capacity, two conductors
    • Rigid 1... 6 mm²
    • Flexible 1... 6 mm²


Versions


  • Gray

8WH1 000-0AK00

  • Blue

8WH1 000-0AK01

Accessories

Section


  • Cover, for through-type terminals, for terminal size 16 mm²

Accessories

8WH9 076-1PA00

  • Reducing bridge, for connecting terminals, from terminal size 16 mm2 to 2.5 or 4 mm2

  • From screw to screw

dto.

8WH9 002-8EC10

  • From screw to spring

dto.

8WH9 002-8FC10

  • Warning covers, for terminal size 16 mm²

dto.

8WH9 066-5BA06



Through-type PE terminals, terminal size 16 mm²

  • CURUS
  • CSA
  • Terminal width 12,2 mm
  • AWG 16-4
  • Connection capacity, one conductor
    • Rigid 1.5... 25 mm²
    • Flexible 1.5... 25 mm²
  • Connection capacity, two conductors
    • Rigid 1... 6 mm²
  • Flexible 1... 6 mm²
  • Green-yellow

8WH1 000-0CK07

Accessories

Section


  • Cover, for through-type terminals, for terminal size 16 mm²

Accessories

8WH9 076-1PA00

  • Warning covers, for terminal size 16 mm²

dto.

8WH9 066-5BA06

Terminal size 35 mm²



8WH1 000-0AM00

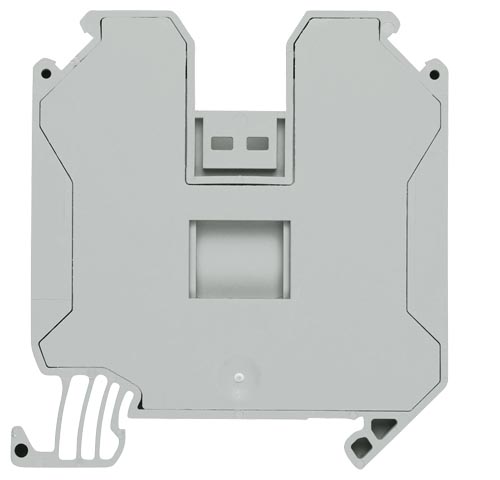

Through-type terminals, terminal size 35 mm²

  • CURUS
  • CSA
  • Terminal width 16 mm
  • I max = 150 A
  • U max = 1000 V
  • AWG 16-1/0
  • Connection capacity, one conductor
    • Rigid 1.5... 50 mm²
    • Flexible 1.5... 50 mm²
  • Connection capacity, two conductors
    • Rigid 1.5... 16 mm²
    • Flexible 1.5... 10 mm²
  • Enclosed on both sides


Versions


  • Gray

8WH1 000-0AM00

  • Blue

8WH1 000-0AM01

Accessories

Section


  • Reducing bridge, for connecting terminals, from terminal size 35 mm 2 to 2.5 or 4 mm 2

  • From screw to screw

Accessories

8WH9 002-8GC10

  • From screw to spring

dto.

8WH9 002-8HC10

  • Warning covers, for terminal size 35 mm²

dto.

8WH9 067-5BA06

8WH1 000-0CM07

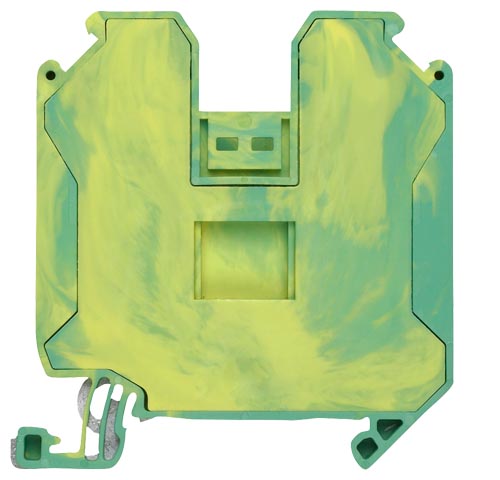

Through-type PE terminals, terminal size 35 mm²

  • CURUS
  • CSA
  • Terminal width 16 mm
  • AWG 16-2
  • Connection capacity, one conductor
    • Rigid 1.5... 35 mm²
    • Flexible 1.5... 35 mm²
  • Connection capacity, two conductors
    • Rigid 1.5... 16 mm²
  • Flexible 1.5 ... 10 mm²
  • Enclosed on both sides
  • Green-yellow

8WH1 000-0CM07

Accessories

Section



Warning covers, for terminal size 35 mm²

Accessories

8WH9 067-5BA06

Accessories



8WH9 000-1PA00

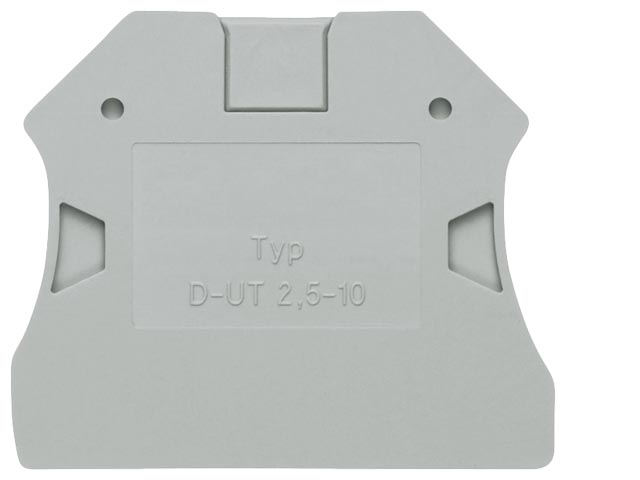

Cover, for through-type terminals

  • 2,2 mm wide
  • Gray


Versions


  • For terminal size 2,5 to 10 mm²

8WH9 000-1PA00

  • For terminal size 16 mm²

8WH9 076-1PA00

8WH9 002-8AC10

Reducing bridge, for connecting terminals



Versions


  • from terminal size 6 mm2 to 2.5 or 4 mm2

  • From screw to screw

8WH9 002-8AC10

  • From screw to spring

8WH9 002-8BC10

  • from terminal size 10 mm2 to 2.5 or 4 mm2

  • From screw to screw

8WH9 002-8CC10

  • From screw to spring

8WH9 002-8DC10

  • from terminal size 16 mm2 to 2.5 or 4 mm2

  • From screw to screw

8WH9 002-8EC10

  • From screw to spring

8WH9 002-8FC10

  • from terminal size 35 mm2 to 2.5 or 4 mm2

  • From screw to screw

8WH9 002-8GC10

  • From screw to spring

8WH9 002-8HC10



Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²

  • for visual and electrical separation of terminal groups
  • 2 mm thick.

8WH9 070-6BA00

8WH9 066-5BA06

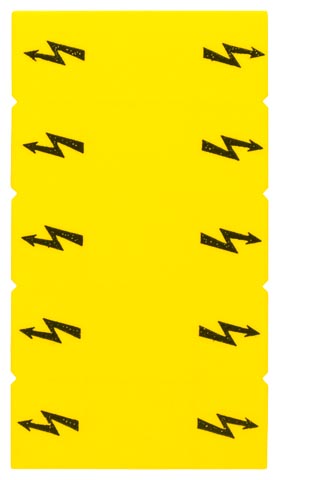

Warning covers

  • Motif Blitz
  • yellow


Versions


  • For terminal size 2.5 mm², width 5.2 mm

8WH9 060-5BA06

  • For terminal size 4 mm², width 6.2 mm

8WH9 063-5BA06

  • For terminal size 6 mm², width 8.2 mm

8WH9 064-5BA06

  • For terminal size 10 mm², width 10.2 mm

8WH9 065-5BA06

  • For terminal size 16 mm², width 12.2 mm

8WH9 066-5BA06

  • For terminal size 35 mm², width 16 mm

8WH9 067-5BA06
