Terminal size 2.5 mm²
|
|
8WH1 000-0AF00
|

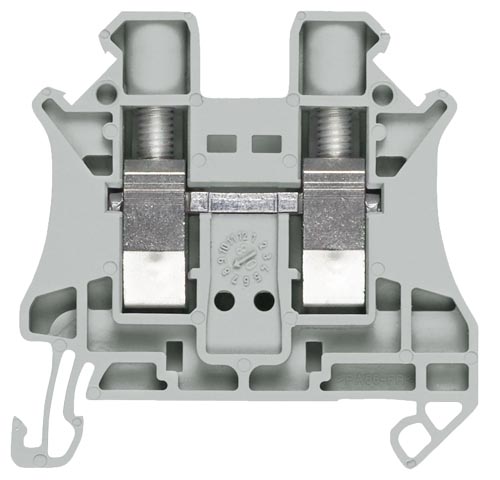

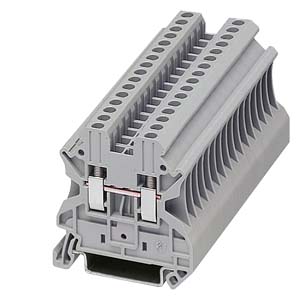

Through-type terminals, terminal size 2.5 mm²
-
CURUS
- CSA
- Terminal width 5.2 mm
-
I
max = 32 A
-
U
max = 1000 V
- AWG 26-12
- Connection capacity, one conductor
- rigid 0.14... 4 mm²
- Flexible 0.14... 4 mm²
- Connection capacity, two conductors
- rigid 0.14... 1.5 mm²
- Flexible 0.14... 1.5 mm²
|
|
Versions
|
|
|
8WH1000-0AF00
|
|
8WH1000-0AF01
|
Accessories
|
Section
|
|
-

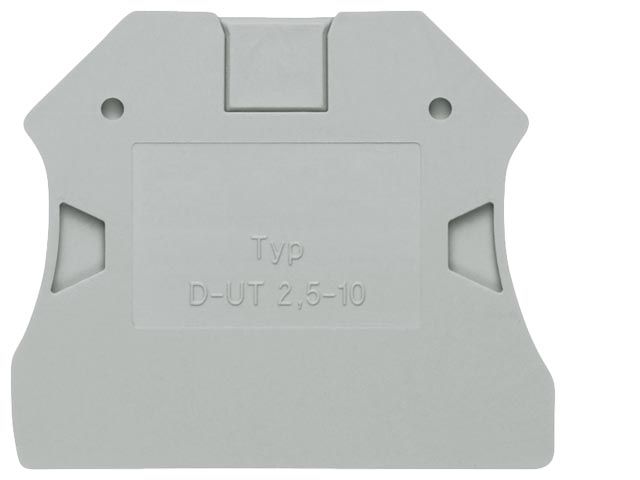

Cover, for through-type terminals, for terminal size 2.5 to 10 mm²
|
Accessories
|
8WH9000-1PA00
|
-
Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²
|
dto.
|
8WH9070-6BA00
|
-
Warning covers, for terminal size 2.5 mm²
|
dto.
|
8WH9060-5BA06
|
8WH1 000-0CF07
|

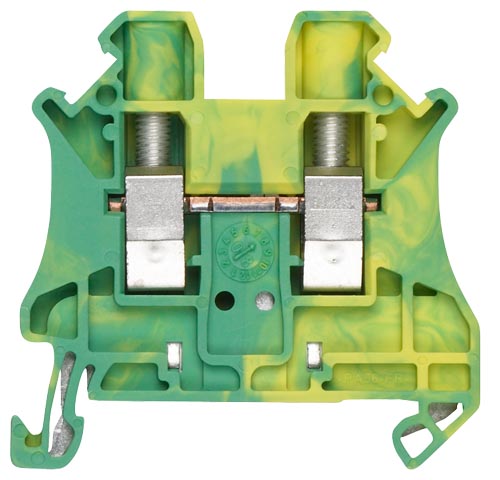

Through-type PE terminals, terminal size 2.5 mm²
-
CURUS
- CSA
- Terminal width 5.2 mm
- AWG 26-12
- Connection capacity, one conductor
- rigid 0.14... 4 mm²
- Flexible 0.14... 4 mm²
- Connection capacity, two conductors
|
8WH1000-0CF07
|
Accessories
|
Section
|
|
-
Cover, for through-type terminals, for terminal size 2.5 to 10 mm²
|
Accessories
|
8WH9000-1PA00
|
-
Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²
|
dto.
|
8WH9070-6BA00
|
-
Warning covers, for terminal size 2.5 mm²
|
dto.
|
8WH9060-5BA06
|
Terminal size 4 mm²
|
|
8WH1 000-0AG00
|
Through-type terminals, terminal size 4 mm²
-
CURUS
- CSA
- Terminal width 6.2 mm
-
I
max = 41 A
-
U
max = 1000 V
- AWG 26-10
- Connection capacity, one conductor
- rigid 0.14... 6 mm²
- Flexible 0.14... 6 mm²
- Connection capacity, two conductors
- rigid 0.14... 1.5 mm²
- Flexible 0.14... 1.5 mm²
|
|
Versions
|
|
|
8WH1000-0AG00
|
|
8WH1000-0AG01
|
Accessories
|
Section
|
|
-
Cover, for through-type terminals, for terminal size 2.5 to 10 mm²
|
Accessories
|
8WH9000-1PA00
|
-
Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²
|
dto.
|
8WH9070-6BA00
|
-
Warning covers, for terminal size 4 mm²
|
dto.
|
8WH9063-5BA06
|
8WH1 000-0CG07
|
Through-type PE terminals, terminal size 4 mm²
-
CURUS
- CSA
- Terminal width 6.2 mm
- AWG 26-10
- Connection capacity, one conductor
- rigid 0.14... 6 mm²
- Flexible 0.14... 6 mm²
- Connection capacity, two conductors
|
8WH1000-0CG07
|
Accessories
|
Section
|
|
-
Cover, for through-type terminals, for terminal size 2.5 to 10 mm²
|
Accessories
|
8WH9000-1PA00
|
-
Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²
|
dto.
|
8WH9070-6BA00
|
-
Warning covers, for terminal size 4 mm²
|
dto.
|
8WH9063-5BA06
|
Terminal size 6 mm²
|
|
8WH1 000-0AH00
|
Through-type terminals, terminal size 6 mm²
-
CURUS
- CSA
- Terminal width 8,2 mm
-
I
max = 57 A
-
U
max = 1000 V
- AWG 24-8
- Connection capacity, one conductor
- rigid 0.2... 10 mm²
- Flexible 0.2... 10 mm²
- Connection capacity, two conductors
- rigid 0.2... 2.5 mm²
- Flexible 0.2... 2.5 mm²
|
|
Versions
|
|
|
8WH1000-0AH00
|
|
8WH1000-0AH01
|
Accessories
|
Section
|
|
-
Cover, for through-type terminals, for terminal size 2.5 to 10 mm²
|
Accessories
|
8WH9000-1PA00
|
-
Reducing bridge, for connecting terminals, from terminal size 6 mm2 to 2.5 or 4 mm2
|
|
|
|
dto.
|
8WH9002-8AC10
|
|
dto.
|
8WH9002-8BC10
|
-
Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²
|
dto.
|
8WH9070-6BA00
|
-
Warning covers, for terminal size 6 mm²
|
dto.
|
8WH9064-5BA06
|
8WH1 000-0CH07
|
Through-type PE terminals, terminal size 6 mm²
-
CURUS
- CSA
- Terminal width 8,2 mm
- AWG 24-8
- Connection capacity, one conductor
- rigid 0.2... 10 mm²
- Flexible 0.2... 10 mm²
- Connection capacity, two conductors
|
8WH1000-0CH07
|
Accessories
|
Section
|
|
-
Cover, for through-type terminals, for terminal size 2.5 to 10 mm²
|
Accessories
|
8WH9000-1PA00
|
-
Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²
|
dto.
|
8WH9070-6BA00
|
-
Warning covers, for terminal size 6 mm²
|
dto.
|
8WH9064-5BA06
|
Terminal size 10 mm²
|
|
8WH1 000-0AJ00
|
Through-type terminals, terminal size 10 mm²
-
CURUS
- CSA
- Terminal width 10,2 mm
-
I
max = 76 A
-
U
max = 1000 V
- AWG 20-6
- Connection capacity, one conductor
- rigid 5... 16 mm²
- Flexible 5... 16 mm²
- Connection capacity, two conductors
- rigid 5... 4 mm²
- Flexible 5... 4 mm²
|
|
Versions
|
|
|
8WH1000-0AJ00
|
|
8WH1000-0AJ01
|
Accessories
|
Section
|
|
-
Cover, for through-type terminals, for terminal size 2.5 to 10 mm²
|
Accessories
|
8WH9000-1PA00
|
-
Reducing bridge, for connecting terminals, from terminal size 10 mm2 to 2.5 or 4 mm2
|
|
|
|
dto.
|
8WH9002-8CC10
|
|
dto.
|
8WH9002-8DC10
|
-
Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²
|
dto.
|
8WH9070-6BA00
|
-
Warning covers, for terminal size 10 mm²
|
dto.
|
8WH9065-5BA06
|
8WH1 000-0CJ07
|
Through-type PE terminals, terminal size 10 mm²
-
CURUS
- CSA
- Terminal width 10,2 mm
- AWG 20-6
- Connection capacity, one conductor
- rigid 0.5... 16 mm²
- Flexible 0.5... 16 mm²
- Connection capacity, two conductors
|
8WH1000-0CJ07
|
Accessories
|
Section
|
|
-
Cover, for through-type terminals, for terminal size 2.5 to 10 mm²
|
Accessories
|
8WH9000-1PA00
|
-
Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²
|
dto.
|
8WH9070-6BA00
|
-
Warning covers, for terminal size 10 mm²
|
dto.
|
8WH9065-5BA06
|
Terminal size 16 mm²
|
|
8WH1 000-0AK00
|
Through-type terminals, terminal size 16 mm²
-
CURUS
- CSA
- Terminal width 12,2 mm
-
I
max = 101 A
-
U
max = 1000 V
- AWG 16-4
- Connection capacity, one conductor
- Rigid 1.5... 25 mm²
- Flexible 1.5... 25 mm²
- Connection capacity, two conductors
- Rigid 1... 6 mm²
- Flexible 1... 6 mm²
|
|
Versions
|
|
|
8WH1000-0AK00
|
|
8WH1000-0AK01
|
Accessories
|
Section
|
|
-
Cover, for through-type terminals, for terminal size 16 mm²
|
Accessories
|
8WH9076-1PA00
|
-
Reducing bridge, for connecting terminals, from terminal size 16 mm2 to 2.5 or 4 mm2
|
|
|
|
dto.
|
8WH9002-8EC10
|
|
dto.
|
8WH9002-8FC10
|
-
Warning covers, for terminal size 16 mm²
|
dto.
|
8WH9066-5BA06
|
|
Through-type PE terminals, terminal size 16 mm²
-
CURUS
- CSA
- Terminal width 12,2 mm
- AWG 16-4
- Connection capacity, one conductor
- Rigid 1.5... 25 mm²
- Flexible 1.5... 25 mm²
- Connection capacity, two conductors
|
8WH1000-0CK07
|
Accessories
|
Section
|
|
-
Cover, for through-type terminals, for terminal size 16 mm²
|
Accessories
|
8WH9076-1PA00
|
-
Warning covers, for terminal size 16 mm²
|
dto.
|
8WH9066-5BA06
|
Terminal size 35 mm²
|
|
8WH1 000-0AM00
|
Through-type terminals, terminal size 35 mm²
-
CURUS
- CSA
- Terminal width 16 mm
-
I
max = 150 A
-
U
max = 1000 V
- AWG 16-1/0
- Connection capacity, one conductor
- Rigid 1.5... 50 mm²
- Flexible 1.5... 50 mm²
- Connection capacity, two conductors
- Rigid 1.5... 16 mm²
- Flexible 1.5... 10 mm²
- Enclosed on both sides
|
|
Versions
|
|
|
8WH1000-0AM00
|
|
8WH1000-0AM01
|
Accessories
|
Section
|
|
-
Reducing bridge, for connecting terminals, from terminal size 35 mm
2
to 2.5 or 4 mm
2
|
|
|
|
Accessories
|
8WH9002-8GC10
|
|
dto.
|
8WH9002-8HC10
|
-
Warning covers, for terminal size 35 mm²
|
dto.
|
8WH9067-5BA06
|
8WH1 000-0CM07
|

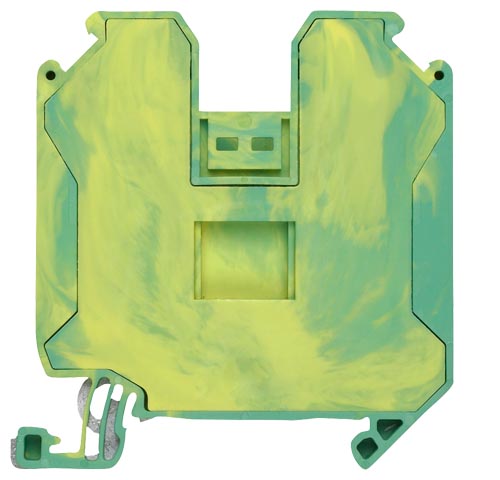

Through-type PE terminals, terminal size 35 mm²
-
CURUS
- CSA
- Terminal width 16 mm
- AWG 16-2
- Connection capacity, one conductor
- Rigid 1.5... 35 mm²
- Flexible 1.5... 35 mm²
- Connection capacity, two conductors
- Enclosed on both sides
- Green-yellow
|
8WH1000-0CM07
|
Accessories
|
Section
|
|
Warning covers, for terminal size 35 mm²
|
Accessories
|
8WH9067-5BA06
|
Accessories
|
|
8WH9 000-1PA00
|
Cover, for through-type terminals
|
|
Versions
|
|
- For terminal size 2,5 to 10 mm²
|
8WH9000-1PA00
|
|
8WH9076-1PA00
|
8WH9 002-8AC10
|
Reducing bridge, for connecting terminals
|
|
Versions
|
|
- from terminal size 6 mm2 to 2.5 or 4 mm2
|
|
|
8WH9002-8AC10
|
|
8WH9002-8BC10
|
- from terminal size 10 mm2 to 2.5 or 4 mm2
|
|
|
8WH9002-8CC10
|
|
8WH9002-8DC10
|
- from terminal size 16 mm2 to 2.5 or 4 mm2
|
|
|
8WH9002-8EC10
|
|
8WH9002-8FC10
|
- from terminal size 35 mm2 to 2.5 or 4 mm2
|
|
|
8WH9002-8GC10
|
|
8WH9002-8HC10
|
|
Compartment partition, for through-type terminals, for terminal size 2.5 to 10 mm²
- for visual and electrical separation of terminal groups
- 2 mm thick.
|
8WH9070-6BA00
|
8WH9 066-5BA06
|

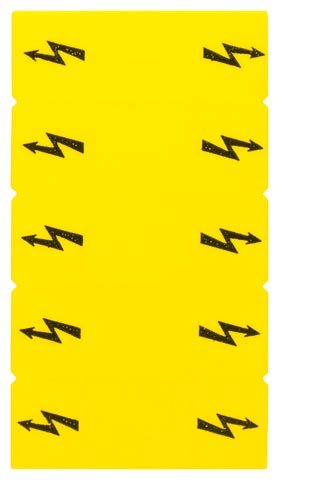

Warning covers
|
|
Versions
|
|
- For terminal size 2.5 mm², width 5.2 mm
|
8WH9060-5BA06
|
- For terminal size 4 mm², width 6.2 mm
|
8WH9063-5BA06
|
- For terminal size 6 mm², width 8.2 mm
|
8WH9064-5BA06
|
- For terminal size 10 mm², width 10.2 mm
|
8WH9065-5BA06
|
- For terminal size 16 mm², width 12.2 mm
|
8WH9066-5BA06
|
- For terminal size 35 mm², width 16 mm
|
8WH9067-5BA06
|
