ENG: 8WH Two-Tier Terminals with Isolating Function/Isolating Blade
Two-tier terminals with isolating function/isolating blade are also available with the same contour as 8WH two-tier terminals. An increasing number of contact points need to be wired in the same space In the signal wiring. The two voltage levels routed through two separate tiers require 50 % less space than equivalent single-tier terminals. To implement a wide range of switching tasks, particularly in MSR technology, an isolating link or isolating plug, and a component plug or a fused plug for 5 x 20 mm glass tube fuses, can be used alternatively in the standardized separation zone in the upper level. The looping of measuring devices is possible over the terminal screws with integrated test socket, so that rated and current measurements can be performed on both floors uninterruptedly. The floor transfer here simplifies operation on the lower floors.
Version
Order No.
Terminal size 4 mm²
8WH1 020-6AC00
8WH1 020-6AG00
Two-tier terminal, with isolating function/isolating link, terminal size 4 mm²
CURUS
CSA
Terminal width 6.2 mm
Imax = 38 A
Umax = 500 V
AWG 26-10
Connection capacity, one conductor
rigid 0.14... 6 mm²
Flexible 0.14... 6 mm²
Connection capacity, two conductors
rigid 0.14... 1.5 mm²
Flexible 0.14... 1.5 mm²
Versions

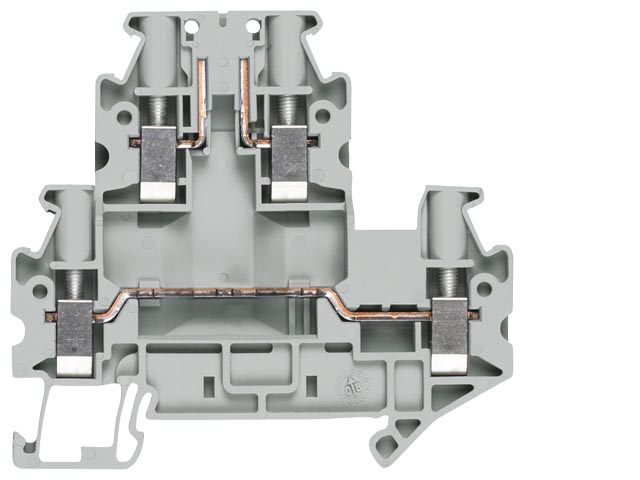

Isolating link on the top level
8WH1020-6AC00

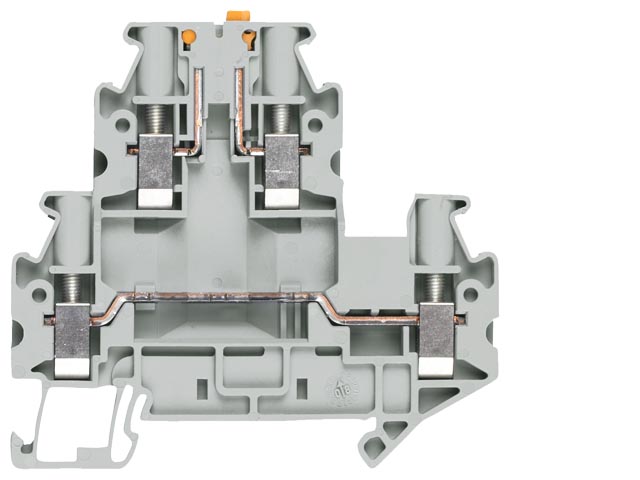

Isolating terminal on the top level
8WH1020-6AG00
Accessories
Section
Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²
Accessories
8WH9000-1QA00
Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²
dto.
8WH9160-0AA00
Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²
dto.
8WH9070-6FA00
Accessories
8WH9 000-1QA00

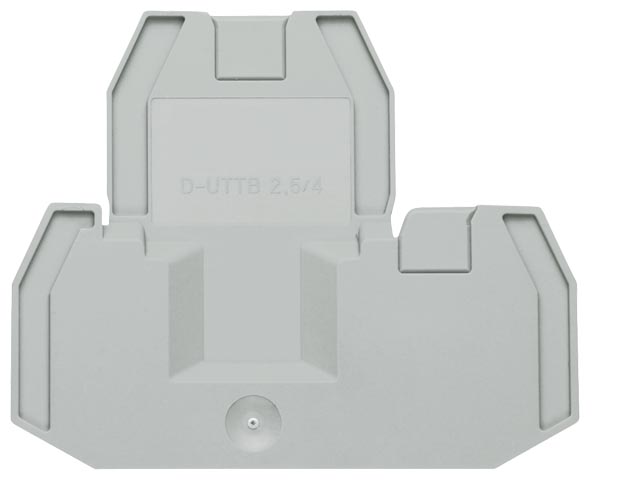

Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²
Width 2.2 mm
Gray
8WH9000-1QA00
8WH9 160-0AA00

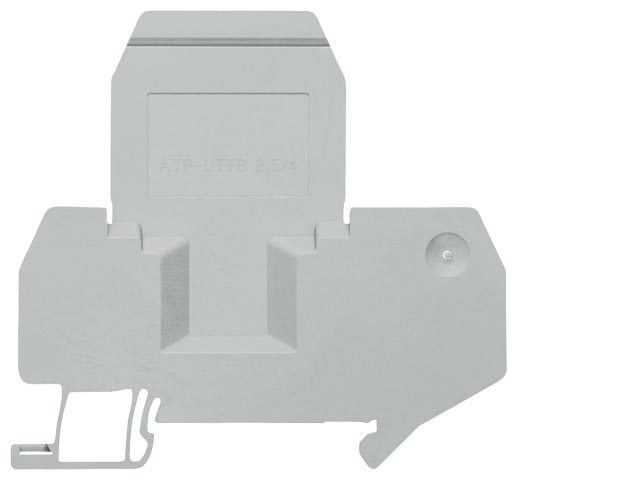

Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²
compensates for floor transfers in case other terminals are mounted.
2.5 mm thick.
Gray
8WH9160-0AA00
8WH9 070-6FA00

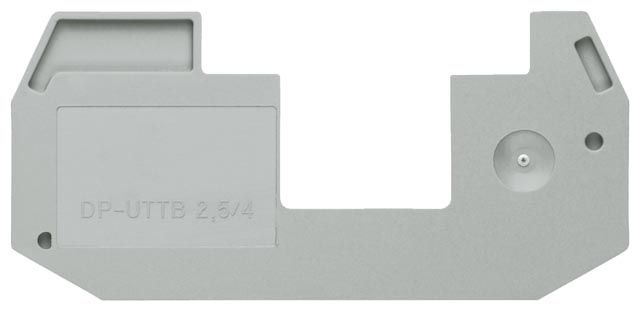

Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²
for visual and electrical separation of terminal groups
