Terminal size 2.5 mm²

8WH1 020-5FF00

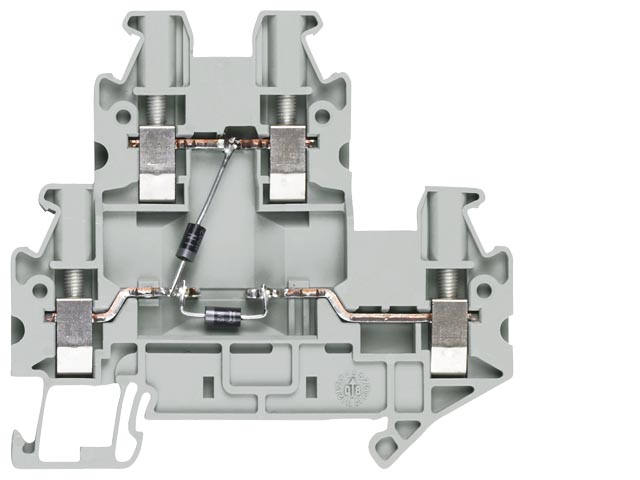

Diode terminals, terminal size 2.5mm²

• _CUR_US
• CSA
• Terminal width 6.2 mm
• I _max = 0.5 A
• U _max = 800 V
• AWG 26-10
• Connection capacity, one conductor

• rigid 0.14... 6 mm²
• Flexible 0.14... 6 mm²

• Connection capacity, two conductors
  • rigid 0.14... 1.5 mm²

• Flexible 0.14... 1.5 mm²

• With integrated diode: 1N 4007
• Gray

Versions

• With 1N 4007 diode integrated

• Let-through from top to bottom

8WH1020-5AF00

• Let-through from bottom to top

8WH1020-5BF00

• Let-through from bottom left to bottom right:

8WH1020-5DF00

• with two 1N 4007 diodes integrated

• Let-through from top to bottom left and from bottom right to bottom left

8WH1020-5FF00

• Let-through from top to bottom left and from top to bottom right

8WH1020-5HF00

Accessories

Section

• Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

Accessories

8WH9000-1QA00

• Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

dto.

8WH9160-0AA00

• Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

dto.

8WH9070-6FA00

Accessories

8WH9 000-1QA00

Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

• Width 2.2 mm
• Gray

8WH9000-1QA00

8WH9 160-0AA00

Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

• compensates for floor transfers in case other terminals are mounted.
• 2.5 mm thick.
• Gray

8WH9160-0AA00

8WH9 070-6FA00

Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

• for visual and electrical separation of terminal groups
• 2 mm thick.
• Gray

8WH9070-6FA00
