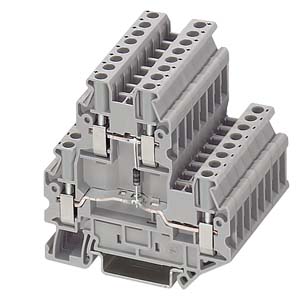

ENG: 8WH Two-Tier Fiode Terminals
| |
8WH1 020-5AF00
|
8WH1 020-5BF00
|
8WH1 020-5DF00
|
8WH1 020-5FF00
|
8WH1 020-5HF00
|
|
Dimensions
|
|
|
|
|
|
- Width / Length / Cover width in mm
|
5,2 / 69,9 / 2,2
|
|
|
|
|
- Height (NS 35/7,5 / NS 35/15) in mm
|
65 / 72,5
|
|
|
|
|
|
Technical specifications according to IEC/ DIN VDE
|
|
|
|
|
|
- Max. load current in A / cross-section in mm²
|
28 / 4
|
|
|
|
|
- Rated impulse (withstand) voltage in kV / pollution degree
|
6 kV/3
|
|
|
|
|
- Rated insulation voltage (working voltage) Ui in V according to IEC 60497-7-1
|
500
|
|
|
|
|
- Overvoltage category / insulating group
|
III / I
|
|
|
|
|
|
Connection capacity
|
|
|
|
|
|
- Flexible with end sleeve, with plastic sleeve in mm²
|
0,25 ... 2,5
|
|
|
|
|
- Flexible with end sleeve, without plastic sleeve in mm²
|
0,25 ... 2,5
|
|
|
|
|
- Flexible with two-wire connection end sleeve, with plastic sleeve in mm²
|
0,5 ... 1,5
|
|
|
|
|
|
|
0,14 ... 4
|
|
|
|
|
|
Stripped length in mm
|
9
|
|
|
|
|
|
Molded plastic type
|
PA
|
|
|
|
|
- Flammability class according to UL 94
|
V0
|
|
|
|
|
|
Approval data (UL/CUL and CSA)
|
|
|
|
|
|
- Rated voltage / rated current / conductor sizes
|
|
|
|
|
|
|
|
-- / -- / --
|
|
|
|
|
|
|
-- / -- / --
|
|
|
|
|
1) Maximum current determined by diode.
Integrated: Diode 1N 4007, blocking voltage:1300 V
Max. current: 0.5 A
|
|
