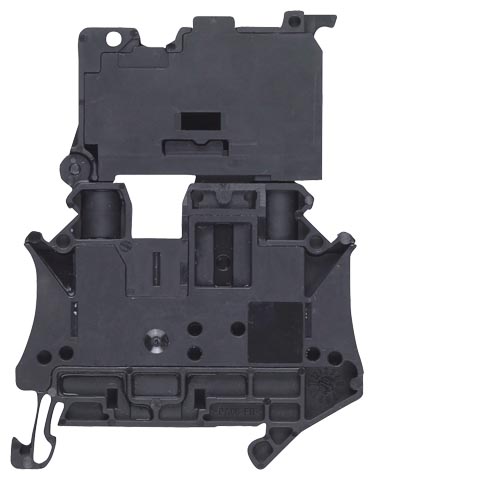

Die 8WH fuse terminals adopt the function of the fuse holders for 5 X 20 mm and 6.3 X 32 mm G fuse links and potential distribution tasks with the bridge shaft.
Version
Order No.
Terminal size 4 mm²
8WH1 000-1GG08
Fuse terminals, terminal size 4 mm², for 5 X 20 mm G fuse links
CURUS
CSA
Terminal width 6.2 mm
Imax = 6.3 A
Umax = 500 V
AWG 26-10
Connection capacity, one conductor
rigid 0.14... 6 mm²
Flexible 0.14... 6 mm²
Connection capacity, two conductors
rigid 0.14... 1.5 mm²
Flexible 0.14... 1.5 mm²
Enclosed on both sides
black
Versions
without LED
8WH1000-1GG08
With LED 10 ... 30 V AC/DC
8WH1000-1KG38
With LED 110 ... 250 V AC/DC
8WH1000-1MG88
Terminal size 6 mm²
8WH1 000-1HH08
Fuse terminals, terminal size 6 mm², for 6,3 X 32 mm G fuse links
CURUS
Terminal width 8,2 mm
Imax = 10 A
Umax = 630 V
AWG 24-8
Connection capacity, one conductor
rigid 0.2... 10 mm²
Flexible 0.2... 10 mm²
Connection capacity, two conductors
rigid 0.2... 2.5 mm²
Flexible 0.2... 2.5 mm²
Enclosed on both sides
black
Versions
without LED
8WH1000-1HH08
With LED 12 ... 30 V AC/DC
8WH1000-1PH38
Accessories
Section
Reducing bridge, for connecting terminals, from terminal size 6 mm2 to 2.5 or 4 mm2, from screw to screw
Accessories
8WH9002-8AC10
Accessories
8WH9 002-8AC10
Reducing bridge, for connecting terminals, from terminal size 6 mm2 to 2.5 or 4 mm2, from screw to screw
