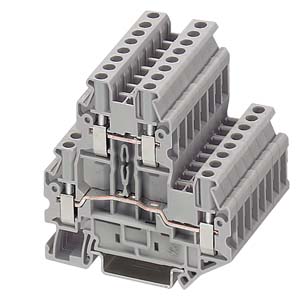

Dimensions

• Width / Length / Cover width in mm

5,2 / 69,9 / 2,2

6,2 / 69,9 / 2,2

5,2 / 69,9 / 2,2

6,2 / 69,9 / 2,2

• Height (NS 35/7,5 / NS 35/15) in mm

65 / 72,5

Technical specifications according to IEC/ DIN VDE

• Max. load current in A / cross-section in mm²

28 / 4

36 / 6

-- / 4

-- / 6

• Rated impulse (withstand) voltage in kV / pollution degree

6 kV/3

8kV/3

• Rated insulation voltage (working voltage) U_i in V according to IEC 60497-7-1

500

800

--

• Overvoltage category / insulating group

III / I

Connection capacity

• Flexible with end sleeve, with plastic sleeve in mm²

0,25 ... 2,5

0,25 ... 4

0,25 ... 2,5

0,25 ... 4

• Flexible with end sleeve, without plastic sleeve in mm²

0,25 ... 2,5

0,25 ... 4

0,25 ... 2,5

0,25 ... 4

• Flexible with two-wire connection end sleeve, with plastic sleeve in mm²

0,5 ... 1,5

0,5 ... 2,5

0,5 ... 1,5

0,5 ... 2,5

• rigid in mm²

0,14 ... 4

0,14 ... 6

0,14 ... 4

0,14 ... 6

Stripped length in mm

9

Molded plastic type

PA

• Flammability class according to UL 94

V0

Approval data (UL/CUL and CSA)

• Rated voltage / rated current / conductor sizes

• UL/CUL: in V/A / AWG

600 / 20 / 26-12

600 / 30/ 26-12

-- / -- / 26-12

-- / -- / 26-10

• CSA: in V/A / AWG

-- / -- / --

Dimensions

• Width / Length / Cover width in mm

6,2 / 69,9 / 2,2

• Height (NS 35/7,5 / NS 35/15) in mm

65 / 72,5

Technical specifications according to IEC/ DIN VDE

• Max. load current in A / cross-section in mm²

28 / 4

36 / 6

• Rated impulse (withstand) voltage in kV / pollution degree

8kV/3

8kV/3

• Rated insulation voltage (working voltage) U_i in V according to IEC 60497-7-1

500

• Overvoltage category / insulating group

III / I

Connection capacity

• Flexible with end sleeve, with plastic sleeve in mm²

0,25 ... 2,5

0,25 ... 4

• Flexible with end sleeve, without plastic sleeve in mm²

0,25 ... 2,5

0,25 ... 4

• Flexible with two-wire connection end sleeve, with plastic sleeve in mm²

0,5 ... 1,5

0,5 ... 2,5

• rigid in mm²

0,14 ... 4

0,14 ... 6

Stripped length in mm

9

Molded plastic type

PA

• Flammability class according to UL 94

V0

Approval data (UL/CUL and CSA)

• Rated voltage / rated current / conductor sizes

• UL/CUL: in V/A / AWG

600 / 20 / 26-12

600 / 30 / 26-10

• CSA: in V/A / AWG

-- / -- / --
