Features common to all versions:

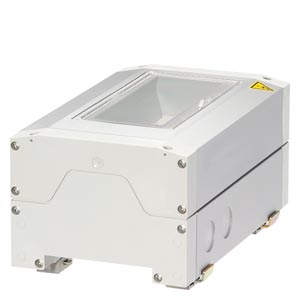

- The enclosure is made from aluminum and insulating material at both ends.
- Cables can be infed from 4 directions (use plastic screwed cable glands with strain relief (not included in the scope of supply of the enclosure)).
- Connecting cables must be supported if necessary.
- Can be combined with tap-off or feeder units.
- A standard mounting rail is integrated for device installation.
- Two sizes with 4 MW and 8 MW space requirement (1 MW = 18 mm)
- Without or with Schuko socket outlets or CEE socket outlets
- Without or with device installation unit for external actuation (two sizes with 4 MW and 8 MW)
- Installation of devices (e.g. fuse bases) according to DIN 43871 up to and including 35 A possible.
Ausfuhrungsbeispiele
BD01-GK2X/F
BD01-GK2X/2SD163CEE165
