Molded plastic-enclosed tap-off units
Features common to all versions:
- Molded-plastic enclosures
- Partly transparent cover for the protective devices
- Energy pick-off over silver-plated lyra contacts
- Reliable prevention of incorrect mounting.
- Cables are infed from one direction (use plastic screwed cable glands with strain relief (not included in the scope of supply of the enclosure))
- Opening the enclosure and connecting the cable are possible only when the tap-off unit is removed
- Connecting cables must be supported if necessary.
Tap-off units, equipped
- One size for 1 cylindrical fuse (10 mm 38 mm), phase assignment L1, L2 or L3 can be freely selected
- One size for 3 cylindrical fuses (10 mm 38 mm)
- One size with 3 MW space requirement (1 MW = 18 mm)
Various versions with fuse bases, miniature circuit breakers, Schuko socket outlets and CEE socket outlets up to and including 32 A
BD01-AK01X/ZS
BD01-AK02X/ZS3
BD01-AK02M0/A323
BD01-AK02M0/CEE165A163
Tap-off units for equipping by the user
- One size with 3 MW space requirement (1 MW = 18 mm), for operation from the outside through a hinge switch integrated in the cover.
- Installation of devices (e.g. miniature circuit breakers) according to DIN 43871 up to and including 32 A possible.
BD01-AK02M0/F

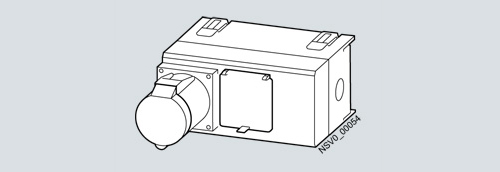

Tap-off units made of aluminium
Features common to all versions:
- The enclosure is made from aluminum and insulating material at both ends.
- A standard mounting rail is integrated for device installation.
- Energy pick-off over silver-plated lyra contacts
- The isolating device integrated in the tap-off unit ensures that the tap-off unit is de-energized when the cover is open.
- Mounting and removing operations at the outgoing point are possible only when the cover is open (contacts inserted).
- Reliable prevention of incorrect mounting.
- Cables can be infed from 3 directions (use plastic screwed cable glands with strain relief (not included in the scope of supply of the enclosure)).
- Can be combined with ancillary equipment units for function expansions.
- Connecting cables must be supported if necessary.
Tap-off units, equipped
- Two sizes with 4 MW or 8 MW space requirement (1 MW = 18 mm)
- Various versions with fuse bases, miniature circuit breakers, Schuko socket outlets and CEE socket outlets up to and including 32 A.
- With device installation unit for the versions equipped with miniature circuit breakers.
BD01-AK1M1/A163

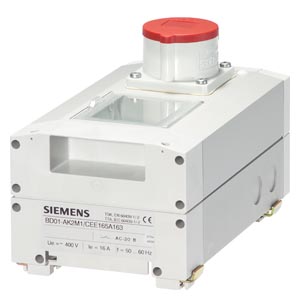

BD01-AK2M1/CEE165A163
Tap-off units for equipping by the user
- Two sizes with 4 MW and 8 MW space requirement (1 MW = 18 mm)
- Without or with device installation unit for external actuation (2 sizes with 4 MW and 8 MW)
- Installation of devices (e.g. miniature circuit breakers) according to DIN 43871 up to and including 63 A possible
BD01-AK1M1/F
