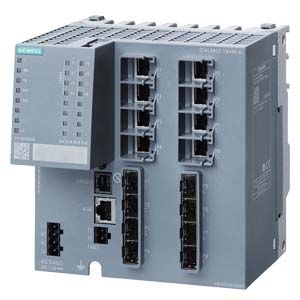

SCALANCE XM408-8C Industrial Ethernet switch

The switches of the SCALANCE XM?400 product line allow for the flexible design of electrical or optical Industrial Ethernet networks with high availability. They are ideally suited for configuring the plant bus and the terminal bus of the SIMATIC PCS 7 process control system in electrical or optical Gigabit ring technology (non-redundant and redundant rings). Network topology, type and number of ports can be adapted easily to the structure of the plant.

In the long-term, the SCALANCE XM?400 switches will supersede the switches of the SCALANCE X?400 range, SCALANCE X414?3E and X408?2.

Product range for SIMATIC PCS 7

• Basic devices with integrated Gigabit Ethernet twisted pair interfaces (10/100/1000 Mbit/s)
  • XM416?4C with 16 ports (of which 4 are combo ports)
  • XM408?8C with 8 combo ports
  • XM408?4C with 8 ports (of which 4 are combo ports)
• Port extender for flexible expansion of the basic device up to 24 ports (8 RJ45 ports, 8 RJ45 ports with Power over Ethernet or 8 slots for SFP plug-in transceiver)

Note:

A combo port consists of an electric port and a slot for a plug-in transceiver. Only one of the two can be active at any one time. Inserting a plug-in transceiver results in disabling of the electric port.

Special features

SCALANCE X-400 and XM?400 features
