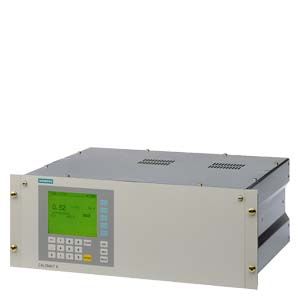

General (based on EN 61207/IEC 1207. All data refers to the binary mixture H2 in N2)
|
Measuring ranges
|
4, internally and externally switchable; automatic measuring range switchover also possible
|
Largest possible measuring span
|
100 vol.% H2 (for smallest measuring span, see "Function")
|
Measuring ranges with suppressed zero point
|
Any zero point within 0 ... 100 vol.% can be implemented, smallest possible measuring span: 5 % H2
|
Operating position
|
Front wall, vertical
|
Conformity
|
CE mark in accordance with EN 61326/A1 and EN 61010/1
|
Design, enclosure
|
Degree of protection
|
IP20 according to EN 60529
|
Weight
|
Approx. 10 kg
|
Electrical characteristics
|
EMC (Electromagnetic Compatibility) (All signal lines must be shielded. Measured value deviations of up to 4 % of the smallest measuring range may occur in ranges with strong electromagnetic interference.)
|
In accordance with standard requirements of NAMUR NE21 (08/98)
|
Electrical safety
|
In accordance with EN 61010-1; overvoltage category II
|
Auxiliary power (see nameplate)
|
100 V -10% ... 120 V +10% AC, 48 ... 63 Hz or 200 V -10% ... 240 V +10% AC, 48 ... 63 Hz
|
Power consumption
|
Approx. 20 VA
|
Fuse values
|
100 ... 120 V: 1.0T/250 200 ... 240 V: 0.63 T/250
|
Gas inlet conditions
|
Sample gas pressure
|
800 ... 1 100 hPa (absolute)
|
Sample gas flow
|
30 ... 90 l/h (0.5 ... 1.5 l/min)
|
Sample gas temperature
|
Min. 0 to max. 50 °C, but above the dew point
|
Temperature of the measuring cell
|
Approx. 60 ?C
|
Sample gas humidity
|
< 90% relative humidity
|
Dynamic response
|
Warm-up period
|
< 30 min (the technical specification will be met after 2 hours)
|
Delayed display (T90)
|
< 5 s
|
Damping (electrical time constant)
|
0 ... 100 s, parameterizable
|
Dead time (purging time of the gas path in the unit at 1 l/min)
|
Approx. 0.5 s
|
Measuring response (relating to sample gas pressure 1 013 hPa absolute, 0.5 l/min sample gas flow and 25 °C ambient temperature)
|
Output signal fluctuation
|
< ± 0.75 % of the smallest possible measuring range according to rating plate, with electronic damping constant of 1 s (? = 0.25%)
|
Zero point drift
|
< ± 1 %/week of the smallest possible measuring span according to rating plate
|
Measured-value drift
|
< ± 1 %/week of the smallest possible measuring span according to rating plate
|
Repeatability
|
< 1 % of the current measuring range
|
Detection limit
|
1 % of the current measuring range
|
Linearity error
|
< ± 1 % of the current measuring range
|
Influencing variable (relating to sample gas pressure 1 013 hPa absolute, 0.5 l/min sample gas flow and 25 °C ambient temperature)
|
Ambient temperature
|
< 1%/10 K referred to smallest possible measuring span according to rating plate
|
Accompanying gases
|
Deviation from zero point (for influence of interfering gas see paragraph titled "Interference influences")
|
Sample gas flow
|
< 0.2 % of the smallest possible span according to rating plate with a change in flow of 0.1 l/min within the permissible flow range
|
Sample gas pressure
|
< 1 % of the current measuring range with a pressure change of 100 hPa
|
Auxiliary power
|
< 0.1% of the current measuring range with rated voltage ± 10%
|
Electrical inputs and outputs
|
Analog output
|
0/2/4 ... 20 mA, isolated; load max. 750 ?
|
Relay outputs
|
6, with changeover contacts, freely parameterizable, e.g. for measuring range identification; load: 24 V AC/DC/1 A, isolated
|
Analog inputs
|
2, dimensioned for 0/2/4 … 20 mA for external pressure sensor and correction of cross-interference
|
Binary inputs
|
6, designed for 24 V, isolated, freely parameterizable, e.g. for measurement range switchover
|
Serial interface
|
RS 485
|
Options
|
AUTOCAL function with 8 additional binary inputs and relay outputs each, also with PROFIBUS PA or PROFIBUS DP
|
Climatic conditions
|
Permissible ambient temperature
|
-30 … +70 °C during storage and transportation, 5 … 45 °C during operation
|
Permissible humidity (dew point must not be fallen below)
|
< 90% relative humidity as annual average, during storage and transportation
|
