8WH1000-1MG88

Внимание! Указаны цены архивного каталога СА01. Для уточнения актуальной цены перейдите по ссылке заказного номера товара или перейдите в каталог СА01 2016

Цена на сайте указана розничная в ЕВРО без учета НДС.
Для уточнения цены и размера предоставляемой скидки - звоните или присылайте заявки

Заказной номер	Вес	PG	Описание продукта	Цена
8WH1000-1MG88	0.01	044	КЛЕММА С ПРЕДОХРАНИТЕЛЕМ (5X20),4ММ2,110-250V	12.18 от ноября 2013

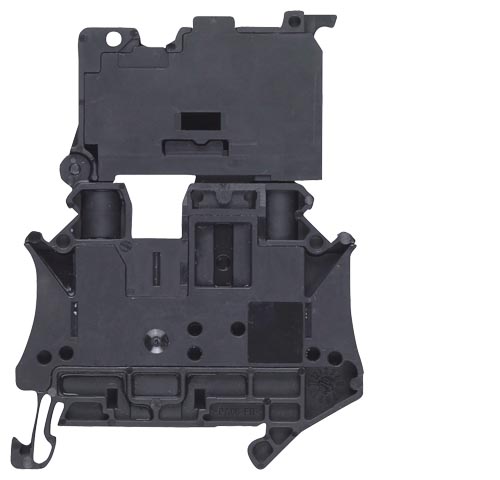

ENG: 8WH Fuse Terminals

Die 8WH fuse terminals adopt the function of the fuse holders for 5 X 20 mm and 6.3 X 32 mm G fuse links and potential distribution tasks with the bridge shaft.

	Version		Order No.
Terminal size 4 mm²
8WH1 000-1GG08	Fuse terminals, terminal size 4 mm², for 5 X 20 mm G fuse links _CUR_US CSA Terminal width 6.2 mm I _max = 6.3 A U _max = 500 V AWG 26-10 Connection capacity, one conductor rigid 0.14... 6 mm² Flexible 0.14... 6 mm² Connection capacity, two conductors rigid 0.14... 1.5 mm² Flexible 0.14... 1.5 mm² Enclosed on both sides black
	Versions
	without LED		8WH1 000-1GG08
	With LED 10 ... 30 V AC/DC		8WH1 000-1KG38
	With LED 110 ... 250 V AC/DC		8WH1 000-1MG88
Terminal size 6 mm²
8WH1 000-1HH08	Fuse terminals, terminal size 6 mm², for 6,3 X 32 mm G fuse links _CUR_US Terminal width 8,2 mm I _max = 10 A U _max = 630 V AWG 24-8 Connection capacity, one conductor rigid 0.2... 10 mm² Flexible 0.2... 10 mm² Connection capacity, two conductors rigid 0.2... 2.5 mm² Flexible 0.2... 2.5 mm² Enclosed on both sides black
	Versions
	without LED		8WH1 000-1HH08
	With LED 12 ... 30 V AC/DC		8WH1 000-1PH38
	Accessories	Section
	Reducing bridge, for connecting terminals, from terminal size 6 mm ² to 2.5 or 4 mm ² , from screw to screw	Accessories	8WH9 002-8AC10
Accessories
8WH9 002-8AC10	Reducing bridge, for connecting terminals, from terminal size 6 mm² to 2.5 or 4 mm², from screw to screw		8WH9 002-8AC10
