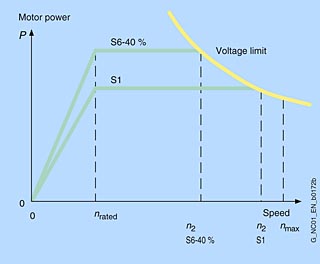

Typical speed/power graph for 1PM4 motors with selectable star/delta
connection1) oil-cooled an 1PM6 motors1)
Typical speed/power graph for 1PM4 motors1) (water-cooled)
The graphs show the typical relationship between motor speed and drive power for 1PM4 motors for the following duty types in accordance with IEC 60034-1:
S1: Continuous duty
S6-40 %: Continuous duty with intermittent loading and a relative duty factor of 40 % (S6-40 %) with a maximum duty cycle time of 10 minutes.
|
1PM motor |
Rated speed |
Attainable speeds for rated power in duty type in accordance with IEC 60034 1 |
Rated speed |
Attainable speeds for rated power in duty type in accordance with IEC 60034 1 |
||
|---|---|---|---|---|---|---|
|
Star connection |
Delta connection |
|||||
|
Type |
n ratedY |
n 2 2) |
n rated |
n 2 2) |
||
|
S1 |
S6-40 % |
S1 |
S6-40 % |
|||
|
rpm |
rpm |
rpm |
rpm |
rpm |
rpm |
|
|
Oil cooling |
||||||
|
1PM4101 |
1500 |
9710 |
7170 |
4000 |
12000 |
12000 |
|
1PM4105 |
1500 |
9000 |
6360 |
4000 |
12000 |
12000 |
|
1PM4133 |
1500 |
8000 |
8140 |
4000 |
10500 |
10500 |
|
1PM4137 |
1500 |
7000 |
5920 |
4000 |
10500 |
10500 |
|
Water cooling |
||||||
|
1PM4101 |
1500 |
9670 |
7590 |
– |
– |
– |
|
1PM4105 |
1500 |
9460 |
7130 |
– |
– |
– |
|
1PM4133 |
1500 |
8290 |
6130 |
– |
– |
– |
|
1PM4137 |
1500 |
6860 |
4920 |
– |
– |
– |
1) For further configuration information, see the 1PM Motors Configuration Manual.
2) SINAMICS S120: Values taken from the speed/power graph when using an Active Line Module on a 400 V 3 AC supply system. If you are using a Smart Line Module, and with option for increased maximum speed, proceed in accordance with the 1PM Motors Configuration Manual.
2) SIMODRIVE 611: Values taken from the speed/power graph with regulated infeed. When using unregulated infeed modules, and with option for increased maximum speed, proceed in accordance with the 1PM Motors Configuration Manual.
