Connecting kits

Versions

• IP41
  For side-by-side mounting of enclosures with screws, washers and nuts

8GG3 880-3

• IP55
  For side-by-side mounting of enclosures with screws, washers, nuts and 10 m sealing strip roll

8GG3 880-2

8GK4 854-8KK05

Longitudinal stays acc. to DIN 43870 (8GK system)

• For mounting assembly kits that are smaller than the overall width of the distribution board
• 1 set = 2 stays

8GK4 854-8KK05

Locking systems

Versions

8GG3 800-1

• Rotary handles
  • Recessable
  • With mounting options for profile semicylinders

8GG3 800-1

8GD9 255

• Profile semicylinders with E012 lock
  • Incl. key
  • 1 set = 2 locking systems

8GD9 255

• Profile semicylinders with Senat tumbler
  • With 2 keys

8GK9 560-0KK08

8GK9 910-0KK23

Circuit diagram pockets

DIN A 4, transparent sleeve

8GK9 910-0KK23

8GD6 047

8GD6 095

8GD6 048

8GD6 050

Molded-plastic cable flange plates

Versions

Degree of protection IP41

• Without knockouts

8GD6 047

• With cellular rubber insert for arbitrary cable insertion

8GD6 095

• With filter fan

8GD6 157

• With knockouts

• 13 x Pg 3.3/6 x Pg 6/5 x Pg 21

8GD6 048

• 12 x Pg 29

8GD6 050

• 4 x Pg 29/3 x Pg 36

8GD6 051

• 4 x 75 mm/Pg 48/12 x Pg 36/Pg 29

8GD6 052

Degree of protection IP55 with knockouts

• 13 x Pg 13.3/6 x Pg 6/5 x Pg 21

8GD6 054

• 12 x Pg 29

8GD6 055

• 4 x Pg 29/3 x Pg 36

8GD6 056

Rubber cable entries

• For insertion in knockouts, 38 mm (Pg 29)
• Can also be used as blanking plug
• For cables

Versions

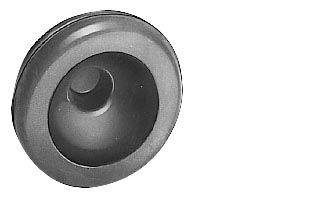

8HP1 805

• 1 x 12 mm ... 29 mm

8HP1 805

8HP1 806

• 2 x 6 mm ... 15 mm

8HP1 806

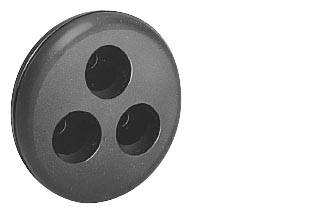

8HP1 807

• 3 x 4 mm ... 12.5 mm

8HP1 807

8HP1 808

• 4 x 4 mm ... 12 mm

8HP1 808

Paint sticks

• RAL 7035 (light gray)
• 2 g

8GK9 910-0KK16

Paint spray cans

• RAL 7035 (light gray)
• 400 ml

8GK9 910-0KK18
