SIDOOR geared motors are available in two technological versions.

DC geared motors are driven by SIDOOR controllers with DC technology, and EC geared motors are driven by SIDOOR controllers with EC technology.

Geared motors are a combination of gear unit, motor and sensor. They are easy to connect to the controller via the interface provided and are automatically detected during commissioning.

The maintenance-free, variable speed drive unit comprises a DC motor with non-self-locking gearing.

The geared motors must be selected according to the dynamic door weight. Two different versions are available for the SIDOOR M2 to SIDOOR M4 DC geared motors as well as the SIDOOR MEG250 EC geared motor.

DC technology:

• SIDOOR M2 geared motors (max. door weight 120 kg)
  • SIDOOR M2 L (pinion left) 6FB1103?0AT10?5MA0
  • SIDOOR M2 R (pinion right) 6FB1103?0AT11?5MA0
• SIDOOR M3 geared motors (max. door weight 180 kg)
  • SIDOOR M3 L (pinion left) 6FB1103?0AT10?4MB0
  • SIDOOR M3 R (pinion right) 6FB1103?0AT11?4MB0
• SIDOOR M4 geared motors (max. door weight 400 kg)
  • SIDOOR M4 L (pinion left) 6FB1103?0AT10?3MC0
  • SIDOOR M4 R (pinion right) 6FB1103?0AT11?3MC0

EC technology:

• SIDOOR MEG250 geared motors (max. door weight of 250 kg)
  • SIDOOR MEG250 L (pinion left) 6FB1233?0BM00?0MP0
  • SIDOOR MEG250 R (pinion right) 6FB1233?0BM01?0MP0

The gear outlet direction is defined as left or right when viewing the gear unit from the front.

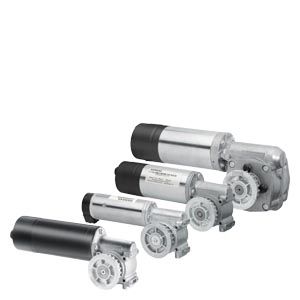

Top: SIDOOR M2 L DC geared motor 6FB1103?0AT10?5MA0 (version with pinion left)

Center: SIDOOR M3 L DC geared motor 6FB1103?0AT10?4MB0 (version with pinion left)

Top: SIDOOR M4 L DC geared motor 6FB1103?0AT10?3MC0 (version with pinion left)

SIDOOR MEG250 L EC geared motor 6FB1233?0BM00?0MP0 (version with pinion left)
