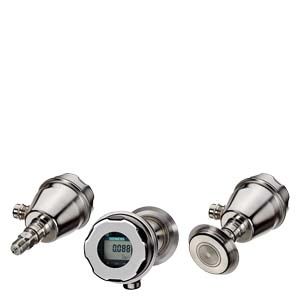

SITRANS P300 (gauge pressure and absolute pressure) . Чертеж. Подробное описание, цены на оборудование Siemens. Большой выбор, низкие цены на SITRANS P300 (gauge pressure and absolute pressure)

| | | | | | | | |

SITRANS P300, with oval flange, dimensions in mm (inch)

SITRANS P300, process connection M20 x 1.5, with mounted mounting bracket, dimensions in mm (inch)

SITRANS P300, flush-mounted, dimensions in mm (inch)

The diagram shows a SITRANS P300 with an example of a flange. In this drawing the height is subdivided into H₁ and H₂.

H₁ = Height of the SITRANS P300 up to a defined cross-section

H₂ = Height of the flange up to this defined cross-section

Only the height H₂ is indicated in the dimensions of the flanges.

Flanges as per EN and ASME

Flange to EN


DN	PN	?D	H₂
25	40	115 mm (4.5")	Approx. 52 mm (2")
25	100	140 mm (5.5")
40	40	150 mm (5.9")
40	100	170 mm (6.7")
50	16	165 mm (6.5")
50	40	165 mm (6.5")
80	16	200 mm (7.9")
80	40	200 mm (7.9")

Flanges to ASME


DN	class	?D	H₂
1"	150	110 mm (4.3")	Approx. 52 mm (2")
1"	300	125 mm (4.9")
1?"	150	130 mm (5.1")
1?"	300	155 mm (6.1")
2“	150	150 mm (5.9")
2“	300	165 mm (6.5")
3“	150	190 mm (7.5")
3“	300	210 mm (8.1")
4“	150	230 mm (9.1")
4“	300	255 mm (10.0")

NuG and pharmaceutical connections

Connections to DIN


DN	PN	?D	H₂
50	25	92 mm (3.6")	Approx. 52 mm (2")
80	25	127 mm (5.0")	Approx. 52 mm (2")


DN	PN	?D	H₂
50	16	64 mm (2.5")	Approx. 52 mm (2")
65	16	91 mm (3.6")	Approx. 52 mm (2")

Other connections

Varivent connection
	DN	PN	?D	H₂
	40 ... 125	40	84 mm (3.3")	Approx. 52 mm (2")


DN	PN	?D	H₂
50	16	90 mm (3.5")	Approx. 52 mm (2")
65	16	120 mm (4.7")	Approx. 52 mm (2")


DN	PN	?D	H₂
50	40	105 mm (4.1")	Approx. 52 mm (2")
			Approx. 52 mm (2")


DN	PN	?D	H₂
50	16	82 mm (3.2")	Approx. 52 mm (2")
65	16	105 mm (4.1")
80	16	115 mm (4.5")
100	16	145 mm (5.7")
2”	16	82 mm (3.2")
2?”	16	105 mm (4.1")
3”	16	105 mm (4.1")
4”	16	145 mm (5.7")


DN	PN	?D	H₂
50	16	110 mm (4.3")	Approx. 52 mm (2")
65	16	140 mm (5.5")
80	16	150 mm (5.9")
100	16	175 mm (6.9")
2”	16	100 mm (3.9")
2?”	16	110 mm (4.3")
3”	16	140 mm (5.5")
4”	16	175 mm (6.9")


DN	PN	?D	H₂
50	16	77.4 mm (3.0")	Approx. 52 mm (2")
65	10	90.9 mm (3.6")
80	10	106 mm (4.2")
100	10	119 mm (4.7")
2”	16	64 mm (2.5")
2?”	16	77.4 mm (3.0")
3”	10	90.9 mm (3.6")
4”	10	779 mm (4.7")


DN	PN	?D	H₂
50	16	125 mm (4.9")	Approx. 52 mm (2")
65	10	145 mm (5.7")
80	10	155 mm (6.1")
100	10	180 mm (7.1")
2”	16	125 mm (4.9")
2?”	10	135 mm (5.3")
3”	10	145 mm (5.7")
4”	10	180 mm (7.1")


DN	PN	?D	H₂
?“	63	37 mm (1.5")	Approx. 45 mm (1.8")
1“	63	48 mm (1.9")	Approx. 47 mm (1.9")
2“	63	78 mm (3.1")	Approx. 52 mm (2")


DN	PN	?D	H₂
25	40	63 mm (2.5")	Approx. 63 mm (2.5")
25	40	63 mm (2.5")	Approx. 170 mm (6.7")


DN	PN	?D	H₂
2“	25	84 mm (3.3")	Approx. 52 mm (2.1")
2?“	25	100 mm (3.9")
3“	25	114 mm (4.5")


DN	PN	?D	H₂
2“	25	70 x 1/6 mm	Approx. 52 mm (2.1")
2?“	25	85 x 1/6 mm
3“	25	98 x 1/6 mm


DN	PN	?D	H₂
2“	25	77 mm (3")	Approx. 52 mm (2.1")
2?“	25	91 mm (3.6")
3“	25	106 mm (4.2")


DN	PN	?D	H₂
2“	25	64 mm (2.5")	Approx. 52 mm (2.1")
2?“	25	77,5 mm (3.1")
3“	25	91 mm (3.6")


DN	PN	?D	H₂
50	25		Approx. 52 mm (2.1")
65	25
80	25
100	25


DN	PN	?D	H₂
50	16		Approx. 52 mm (2.1")
65	16
80	16
100	16


DN	PN	?D	H₂
50	16		Approx. 52 mm (2.1")
65	16
80	16
100


DN	PN	?D	H₂
50	25		Approx. 52 mm (2.1")
65	25
80	16
100	16
