Standard motors from Siemens are characterized by their flexibility, ruggedness and energy efficiency. In general, all motors are suitable for converter-fed operation with line voltages of up to 460 V +10 %. The motors are designed to fulfill the requirements of the European and international markets with an output range from 0.09 to 315 kW.
Standard motors for use worldwide
IEC motors for the European and international market
The standard motors comply both electrically and mechanically with the applicable IEC/EN standards. For exporting to China, CCC certified motors (China Compulsory Certification) can be supplied.
IEC motors specially for the North American market
Motors are also available to the NEMA specification (National Electrical Manufacturers Association), with UL approval (Underwriters Laboratories Inc.) and CSA certification (Canadian Standard Association) for exporting to NAFTA states (USA, Canada and Mexico). The mechanical design of all motors is compliant only to IEC/EN, not to NEMA dimensions.
NEMA motors for the North American market
For further information about NEMA motors according to NEMA standard MG1: http://www.sea.siemens.com/motors
High efficiency energy-saving motors for a positive energy balance
Depending on requirements, energy-saving motors for a positive energy balance are available that are compliant with the legal requirements applicable in the European economic area in accordance with EU Directive 640/2009 as well as for the North American market in accordance with US federal law EISA (Energy Independence Security Act).
Minimum efficiency according to EU Directive 640/2009
The EU Directive defines the minimum efficiency for 2, 4 and 6-pole motors in the output range from 0.75 to 375 kW. The efficiency levels are grouped into 3 efficiency classes (IE = International Efficiency):
- IE1 (Standard Efficiency)
- IE2 (High Efficiency)
- IE3 (Premium Efficiency)
IE1, IE2 and IE3 efficiencies, 4-pole 50 Hz
At a glance: EU Directive No. 640/2009 based on IEC 60034-30
- The EU Directive is in force in all countries of the European Union. Losses are determined and therefore the efficiency is determined in accordance with IEC 60034-2-1:2007
- The following are specified: 2, 4, 6-pole 50/60 Hz squirrelcage motors from 0.75 to 375 kW, for all voltages < 1000 V
Further information at: http://www.siemens.com/international-efficiency
Efficiency requirements according to EISA
The Energy Policy Act (EPAct) was superseded in December 2010 by the Energy Independence Security Act (EISA).
Since then, EISA has extended the legal minimum efficiency requirements.
The following motors must satisfy the NEMA Premium Efficient Level (NEMA MG Table 12-12):
- 1 to 200 hp
- 2, 4, 6-pole
- 230 V, 460 V
Exception/expansion – The following motors must comply with the NEMA Energy Efficient Level (NEMA MG Table 12-11):
- 201 to 500 hp
- 2-pole, 4-pole, 6-pole and 8-pole
- All voltages < 600 V except 230 V and 460 V
- Footless motors (IM B5 and other flange types)
- NEMA design C (increased starting torque)
For details, see NEMA MG1, Table 12-11 and Table 12-12.
The EISA act lays down that the nominal efficiency at full load and a "CC" number (Compliance Certification) must be included on the rating plate. The "CC" number is issued by the US Department of Energy (DOE). The following information is stamped on the rating plate of EISA motors which must be marked by law:
- Nominal efficiency
- Design Letter
- Code Letter
- CONT
- CC No. CC 032A (Siemens) and NEMA MG1-12
Energy-saving motors from Siemens in accordance with IEC 60034-30 or EISA
The product range of energy-saving motors exclusively comprises motors in the EU efficiency classes IE1 "Standard Efficiency", IE2 "High Efficiency", and IE3 "Premium Efficiency". The procedure for determining the efficiency is based on IEC 60034-2-1:2007. With these energy-saving motors, a significant reduction in energy costs can be achieved.
IEC motors from Siemens for the North American market are CC certified and stamped with the number CC032A on the rating plate. Motors are offered with the CSA Energy Efficiency Verification Mark specially for the Canadian market.

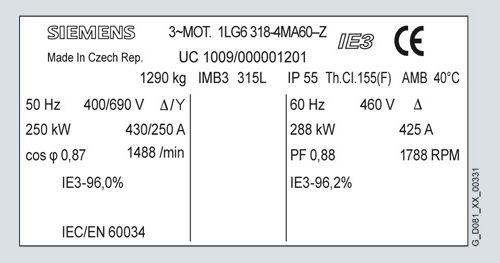

Example of a rating plate
IE3 double rating plate
For further examples, see Part 0.1 of Catalog D 81.1 2012.
Standard motors with increased output and compact construction
Standard motors with increased output and compact construction can be used to advantage in confined spaces. For a slightly longer overall length, the output is at least as high as that of the next largest shaft height. These compact motors are also optimized for efficiency and therefore reduce the operating costs.
Standard motors with reduced output without external fan
Naturally cooled motors with surface cooling without external fan are suitable for the following operating conditions:
- Types of duty with adequate cooling times (e.g. temporary duty for positioning drives)
- Environmental conditions that demand compact installation space (e.g. in motors with a stopping function)
- Conditions which make an external fan disadvantageous (e.g. simple cleaning in the food industry, textile industry).
Preferred and Express motors
The most popular basic versions of motor series 1LA9 and 1LG6, and the corresponding successor types 1LE1001 and 1LE1501 are available under special terms as so-called "Preferred motors". Most of the "Preferred motors" are also available with a shorter delivery time as so-called "Express motors".
The standard delivery time for Express motors is 1 to 2 days from the time of clarification of the order at the factory until dispatch from the factory. To determine the delivery date at the customer site, the appropriate shipping time must be added.
For further information and the complete range, see "Preferred and Express motors".
Spectrum of SIMOTICS SD 1LA/1LG/1LP/1PP Standard motors – Standard degree of protection IP55; optionally IP56 or IP65
|
Motor version |
Motor type |
Motor type – Frame size – Rated output at 50 Hz (values in kW) or 60 Hz (values in hp) |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71 |
80 |
90 |
100 |
112 |
132 |
160 |
180 |
200 |
225 |
250 |
280 |
315 S/M/L |
315 L 1LG6 312-.M 1) |
315 |
355 |
400 |
450 |
||
|
IE2 High Efficiency |
1LG6 |
– |
– |
– |
– |
– |
– |
– |
1LG6 1) – 11 … 315 kW |
– |
– |
– |
– |
||||||
|
IE3 Premium Efficiency |
1LG6 |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
1LG6 1) – 75 … 315 kW |
– |
– |
– |
– |
|
|
IE1 Standard Efficiency |
1LA6/1LG4 |
– |
– |
– |
1LA6 – 0.75 … 18.5 kW |
1LG4 – 11 … 200 kW |
– |
– |
– |
– |
– |
||||||||
|
1PP4 |
– |
– |
– |
– |
– |
– |
– |
1PP4 – 11 … 200 kW |
– |
– |
– |
– |
– |
||||||
|
1LP4 |
– |
– |
– |
– |
– |
– |
– |
1LP4 – 3,7 … 67 kW |
– |
– |
– |
– |
– |
||||||
|
NEMA Energy Efficient |
1LG6 |
– |
– |
– |
– |
– |
– |
– |
1LG6 – 15 … 315 kW / 20 … 400 hp |
– |
– |
– |
– |
||||||
|
NEMA Premium Efficient |
1LG6 |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
1LG6 1) |
– |
– |
– |
– |
|
Pole-changing |
1LG4 |
– |
– |
– |
– |
– |
– |
– |
1LG4 – 4.5 … 175 kW |
– |
– |
– |
– |
– |
|||||
|
For converter-fed operation only |
1LG6 |
– |
– |
– |
– |
– |
– |
– |
1LG6 – 11 … 200 kW |
– |
– |
– |
– |
– |
|||||
1) Order identically priced predecessor type for 1LG6...2AA../1LG6...2AB.. 2-pole motors or 1LG6...4AA.. 4-pole motors using the options for country certificates, marine certificates, explosion-proof version and IE3 version. For 1LG6318-.M.. and 1LG6312-. M.. motors, it is not possible to use the options for country certificates, marine certificates, explosion-proof version, brakes, brakes with encoder, low-noise versions and mounting of a separately driven fan, separately driven fan.
