The SCALANCE XR-500 Industrial Ethernet switches with rugged metal enclosure with IP20 degree of protection are optimized for installation in the 19" control cabinet. The power supply optimized for the 19" cabinet (85 to 264 V AC) for power supply to the SCALANCE XR-500 can either be installed directly at the rear of the SCALANCE XR-500 assembled or connected using connecting cables (installation of the power supply unit in a 19" rack). The data cable outlet of the SCALANCE XR-500 is located optionally either at the front or rear of the device (depending on the device variant).
The switches have:
- 4-pole terminal block on the front for connecting the optionally available power supply unit (85 V to 264 V AC)
- 6-pin connector for assembly of the optionally available power supply unit (85 V to 264 V AC) on the rear
- 2-pole terminal block for connecting the isolated signaling contact for simple display of faults
- Row of LEDs for indicating status information (power, link status, data transfer, power supply, signal contact)
- SELECT/SET pushbutton for easy setting of the fault signaling contact on the device
- Slot on the side of the device for the C-PLUG swap medium for simple device replacement in the event of a fault, or the KEY-PLUG (available soon) for adding IP routing to the device functionality
- Console port (serial interface, RJ11 cable to RS232 (9-pin) included in scope of delivery) and management port (Ethernet interface) for on-site parameterization/diagnostics
The SCALANCE XR-500 switches are available with the following port types:
- Four SFP+ slots for optical SFP+ or SFP plug-in transceivers (multimode and singlemode connections)
- The SFP+ plug-in transceivers support 10 Gbit/s
- The SFP plug-in transceivers support 1000 Mbit/s
- Up to 12 slots for electrical 4-port media modules and electrical PoE 4-port media modules or optical 4-port media modules for multimode or singlemode connections; the optical media modules are available in various connection technologies
- The RJ45 sockets are also available in industry-standard design with additional retaining collars for connection of the Industrial Ethernet FC RJ45 Plug 180
- All electrical Ethernet interfaces support 10/100/1000 Mbit/s,
all optical Ethernet interfaces support 100 or 1000 Mbit/s

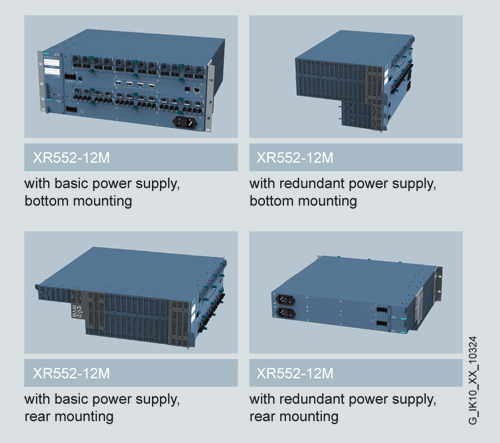

Options for mounting a single/redundant power supply unit to SCALANCE XR552-12M
Product versions
SCALANCE XR552-12M
- LEDs and data cable outlet on the front
- Alternatively, LEDs on the front and data cable outlet at the rear (available soon)
- Connection of power supply unit at rear or above/below the switch
- Four SFP+ slots for equipping with 10 Gigabit Ethernet SFP+ plug-in transceivers or Gigabit SFP plug-in transceivers
- 12x 4-port media module slots
SCALANCE XR528-6M (available soon)
- LEDs and data cable outlet on the front
- Alternatively, LEDs on the front and data cable outlet at the rear (available soon)
- Connection of power supply unit at rear or above/below the switch
- Four SFP+ slots for equipping with 10 Gigabit Ethernet SFP+ plug-in transceivers or Gigabit SFP plug-in transceivers
- 6x 4-port media module slots
