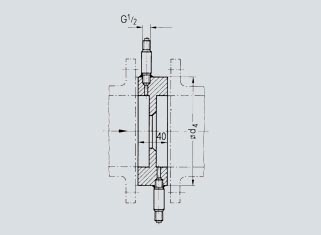

Tapping socket: Socket length is fixed in accordance with the pressure and nominal diameter (DIN 19 205, Part 2), dimensions in mm
- Threaded connections of tapping sockets for liquids and gases up to PN 160, for steam up to PN 100,
Versions for steam lines: See "Technical description", "Function" for position of the tapping sockets.
|
DN |
Inside |
External diameter d4 / sealing face: plane, with recess or with groove. |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
PN 6 |
PN 10 |
PN 16 |
PN 25 |
PN 40 |
PN 63 |
PN 100 |
PN 160 |
PN 250 |
PN 315 |
||
|
50 |
45 ... 55 |
96 |
107 |
107 |
107 |
107 |
113 |
119 |
119 |
124 |
134 |
|
65 |
61 ... 71 |
116 |
127 |
127 |
127 |
127 |
138 |
144 |
144 |
154 |
170 |
|
80 |
77 ... 85 |
132 |
142 |
142 |
142 |
142 |
148 |
154 |
154 |
170 |
190 |
|
100 |
94 ... 108 |
152 |
162 |
162 |
168 |
168 |
174 |
180 |
180 |
202 |
229 |
|
125 |
117 ... 132 |
182 |
192 |
192 |
194 |
194 |
210 |
217 |
217 |
242 |
274 |
|
150 |
144 ... 160 |
207 |
218 |
218 |
224 |
224 |
247 |
257 |
257 |
284 |
311 |
|
200 |
188 ... 211 |
262 |
273 |
273 |
284 |
290 |
309 |
324 |
324 |
358 |
398 |
|
250 |
240 ... 262 |
317 |
328 |
329 |
340 |
352 |
364 |
391 |
388 |
442 |
488 |
|
300 |
292 ... 314 |
373 |
378 |
384 |
400 |
417 |
424 |
458 |
458 |
538 |
– |
|
350 |
331 ... 362 |
423 |
438 |
444 |
457 |
474 |
486 |
512 |
– |
– |
– |
|
400 |
383 ... 408 |
473 |
489 |
495 |
514 |
546 |
543 |
– |
– |
– |
– |
|
500 |
480 ... 514 |
578 |
594 |
617 |
624 |
628 |
– |
– |
– |
– |
– |
Orifice plates with single tappings for installation between EN flanges to EN 1092-1, dimensions in mm
|
DN |
Weight (approx. in kg) |
|
|---|---|---|
|
With smallest nominal pressure |
With largest nominal pressure |
|
|
50 |
1.6 |
4.0 |
|
65 |
2.2 |
6.3 |
|
80 |
2.9 |
7.8 |
|
100 |
3.2 |
11.5 |
|
125 |
4.3 |
15.9 |
|
150 |
4.7 |
20.6 |
|
200 |
7.0 |
33.7 |
|
250 |
9.0 |
50.6 |
|
300 |
12.3 |
37.3 |
|
350 |
17.7 |
44.6 |
|
400 |
19.8 |
43.1 |
|
500 |
25.6 |
46.6 |
Orifice plates with single tappings for installation between EN flanges to EN 1092-1, weights
|
ASME |
External diameter d4 / sealing face: plane, with recess or with groove. |
Weight (approx. in kg) |
|||
|---|---|---|---|---|---|
|
Class 150 |
Class 300 |
Class 600 |
With smallest nominal pressure |
With largest nominal pressure |
|
|
2 inch |
105 |
111 |
111 |
1.6 |
4.0 |
|
2 inch |
124 |
130 |
130 |
2.2 |
6.3 |
|
3 inch |
137 |
149 |
149 |
2.9 |
7.8 |
|
4 inch |
175 |
181 |
194 |
3.2 |
11.5 |
|
5 inch |
197 |
216 |
241 |
4.3 |
15.9 |
|
6 inch |
222 |
251 |
267 |
4.7 |
20.6 |
|
8 inch |
279 |
308 |
321 |
7.0 |
33.7 |
|
10 inch |
340 |
362 |
400 |
9.0 |
50.6 |
|
12 inch |
410 |
422 |
457 |
12.3 |
37.3 |
|
14 inch |
451 |
486 |
492 |
17.7 |
44.6 |
|
16 inch |
514 |
540 |
565 |
19.8 |
43.1 |
|
20 inch |
549 |
597 |
613 |
25.6 |
46.6 |
Orifice plates with single tappings for installation between ASME flanges to ASME B 16.5, dimensions in mm and weights
