Mechanical registers, automatic batchmeters and digital registers with current and pulse output

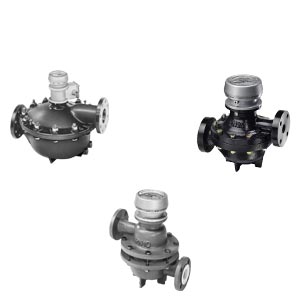

Rotary piston meters DN 15 ( ") with single-pointer dial type 01, without accessories
Rotary piston meters DN 25 (1") with single-pointer dial type 01

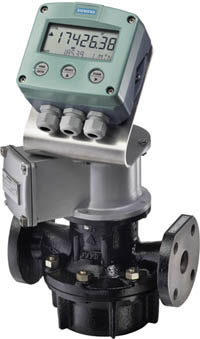

Rotary piston meters with electric flow register in compact form
Acid-resistant rotary piston meters DN 25 (1") with single-pointer dial type 01, without accessories
Rotary piston meters DN 50 (2") with mech. single-pointer dial, type 01, with accessories (here: cooling attachment and pulser)
Automatic batchmeters DN 50 (2"), with rotary piston meter, quantity preset register and shut-off valve
Selection overview, rotary piston meters
|
|
|
|||
|
Version |
Rotary piston meters |
Acid meters |
|||
|
Nominal diameter |
DN 15 |
DN 25 |
DN 50 |
DN 80 |
DN 25 |
|
Order No. |
7MR10..-... |
7MR11..-... |
7MR14..-... |
7MR16..-... |
7MR111.-... |
|
Pressure level |
|||||
|
PN 6 |
• |
||||
|
PN 10 |
• |
• |
|||
|
PN 16 |
• |
• |
|||
|
PN 25 |
• |
• |
• |
• |
|
|
PN 40 |
• |
• |
• |
||
|
PN 63 |
• |
• |
|||
|
Flow variables |
|||||
|
Max. 20 l/min |
• |
||||
|
Max. 100 l/min |
• |
• |
|||
|
Max. 500 l/min |
• |
||||
|
Max. 1,000 l/min |
• |
||||
|
Flange standards |
|||||
|
Drilled acc. to EN |
• |
• |
• |
• |
• |
|
Drilled acc. to ASME |
• |
• |
• |
• |
• |
|
With raised faces |
• |
• |
• |
• |
• |
|
Approvals |
|||||
|
Custody transfer |
• |
• |
• |
||
|
Material acceptance test to EN 10204-3.1 |
• |
• |
• |
• |
|
|
ATEX |
In preparation |
||||
|
Piston materials |
|||||
|
Carbon |
• |
• |
• |
• |
• |
|
Cast iron |
• |
• |
• |
• |
|
|
Ni-resist |
• |
• |
• |
||
|
Hard rubber |
• |
• |
• |
• |
|
|
PTFE 40 °C |
• |
• |
• |
||
|
PTFE 90 °C |
• |
• |
• |
||
|
CrNiMo steel with carbon contact surface |
• |
||||
|
CrNiMo steel with PTFE contact surface |
• |
||||
|
PCTFE |
• |
• |
• |
• |
|
|
Designs |
|||||
|
Mechanical single-pointer dial |
• |
• |
• |
• |
• |
|
Mechanical double-pointer dial |
• |
• |
• |
• |
• |
|
As automatic batchmeter (incl. shut-off valve) |
• |
• |
|||
|
With electronic flow register |
• |
• |
• |
• |
• |
|
Remote or compact installation |
• |
• |
• |
• |
• |
