GAMMA wave – making life simple
Occasionally, wires are not wanted for some applications in buildings, or cables are expensive to install, e.g. cables to the window for the window contact. Or no cables are possible, as is the case with remote control applications.
In such cases, the GAMMA wave wireless system is the ideal solution. The simplest way to integrate GAMMA wave in a GAMMA instabus system is to use the UP 140 wave coupler/instabus.

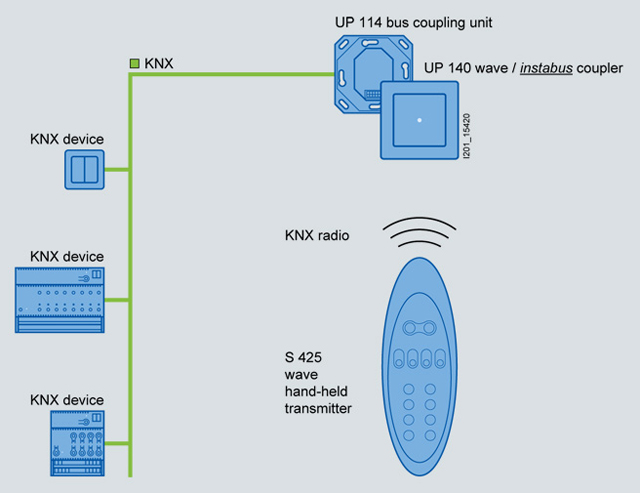

The solution
The benefits
- The ability to enjoy all the advantages of wireless applications in GAMMA instabus projects, e.g. wave hand-held transmitter, battery-operated wave door/window contacts, pushbuttons (battery-operated)
- Group telegrams from GAMMA instabus to GAMMA wave and vice versa
- Retrofitting without the need for new cables
- No separate device required as a gateway
Proceed as follows
- Connect the UP 114 bus coupling units to the KNX
- Plug in the UP 140 wave/instabus coupler
- Configure the UP 140 wave coupler/instabus in the ETS3 (KNX commissioning software)
- Program the UP 140 wave/instabus coupler
- Teach GAMMA wave devices (e.g. z. B. wave hand-held transmitters)
You require the following
- UP 140 wave coupler/instabus (e.g. in the design DELTA style, titanium white: 5WG3 140-2AB11)
- UP 114 bus coupling units (5WG1 114-2AB02)
- Additional wave devices, depending on the application, e.g. S 425 wave hand-held transmitters (5WG3 425-7AB71)
- ETS3 (current version seehttp://www.knx.org)
