Automation solution
The SIMOTION Motion Control system offers, in combination with the SINAMICS S120 drive system and the 1FK7/1FT7 motors optimized for a highly dynamic response, powerful complete solutions for unloading units. For vertical axes, the motors can be fitted with integral holding brakes. All the functions necessary for controlling the holding brakes are included in the drive system. Linear motors are available for maximum performance requirements. Safety-related functions such as reliable protection against restarting or safely reduced velocity are available in the SINAMICS S120 drive system. Portable handheld units (e.g. Mobile Panel 277) can be connected, if required.
Application IMt (Injection Molding Unloading Take Out Systems) for SIMOTION
- Used for machine control for standard retrieving devices (up to 4 axes) as well as special machines (up to 18 axes).
- Containsprepared user interfaces for operation, programming and commissioning of the machines tailored to the requirements of the plastics industry.
-
Executes on
- Drive-based (SIMOTION D) controls in combination with SINAMICS S120
- PC-based (SIMOTION P) controls in combination with SINAMICS S120
- Various SIMATIC Panels are available for visualization
Software functions
- Operating screens created with ProTool/Pro / WinCC flexible; screens that can be expanded by the user
- Operating modes:
- The machine is commissioned via HMI screens
- Manual mode (JOG mode) fast/slow forwards/backwards
- ± 0.1 mm (0.0004 in) positioning from the handheld unit
- Position approach (position, speed)
- Override, teach-in
- Reference point approach
- Traversing block editor
- Automatic mode (restart, stop, continue)
- Single-step
- Reduced speeds in set-up mode, with emergency stop button in handheld terminal
- Safety functions integrated into the drive

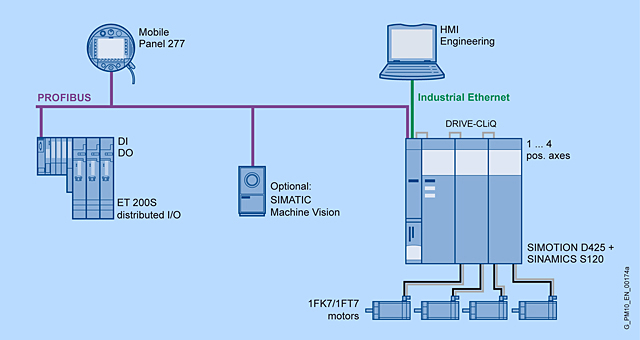

Machine configuration 3 (+1) axes

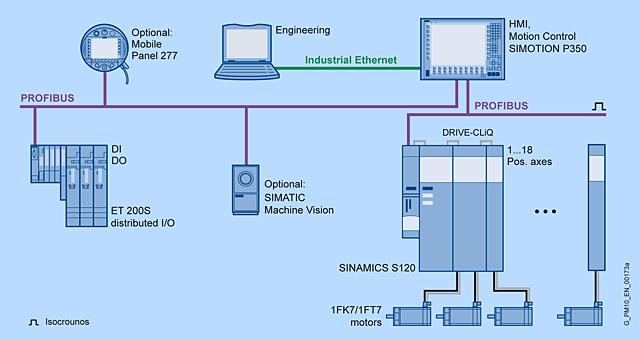

Machine configuration for special machine
