Machine requirements

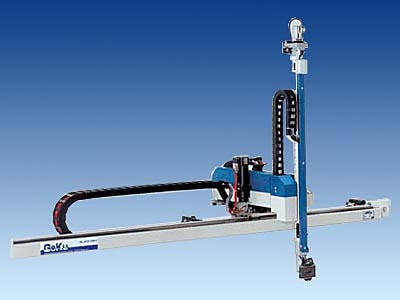

Use of retrieving devices for injection molding machines support the completely automated, operator-free production of plastic parts, as retrieving devices remove the plastic directly from the injection molding machine and feed it to subsequent production stages. In these subsequent processes, the plastic part may be labeled, partially assembled or welded to other parts, for example. Retrieving devices for injection molding machines are usually implemented as linear robots with three Cartesian axes. The shape and function of the grippers are adapted to the part to be removed.

Requirements

• Scalable system for standard and special machines (e.g. subsequent processes)
• Simple, intuitive interface
• The machine is commissioned via user interfaces
• Different password levels can be freely configured (basic/advanced/manufacturer)
• Up to 800 DI + 800 DO provided as standard
• Camera systems and analog I/O can be connected
• Simple sequential programming > "Traversing blocks"
• Teach-in functionality
• Up to 18 axes can be configured
• Multilingual user interface (English, German, French, Italian, Czech are included as standard)
• Hand-held terminal for machine operation
• File management > Portable sequential program
• EUROMAP 12 and 67
