Article?No.

6EP1?322-2BA00

6EP1?323-2BA00

Technical?specifications

Product

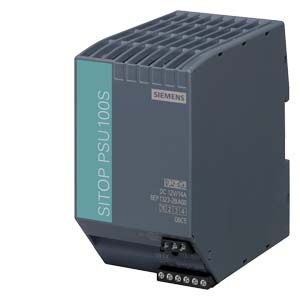

SITOP?PSU100S

SITOP?PSU100S

Power?supply,?type

12?V/7?A

12?V/14?A

Input

Input

1-phase?AC

1-phase?AC

Rated?voltage?value?Vin?rated

…

…

Supply?voltage

• 1?at?AC?nominal?value

120 V

120 V

• 2?at?AC?nominal?value

230 V

230 V

• Note

Automatic?range?selection

Automatic?range?selection

Voltage?range

…

…

Input?voltage

• 1?at?AC

85 … 132 V

85 … 132 V

• 2?at?AC

170 … 264 V

170 … 264 V

Overvoltage?resistance

2.3???Vin?rated,?1.3?ms

2.3???Vin?rated,?1.3?ms

Mains?buffering?at?Iout?rated,?min.

20 ms

20 ms

Mains?buffering

at?Vin?=?93/187?V

at?Vin?=?93/187?V

Rated?line?frequency

• 1

50 Hz

50 Hz

• 2

60 Hz

60 Hz

Rated?line?range

47 … 63 Hz

47 … 63 Hz

Input?current

• at?nominal?level?of?the?input?voltage?120?V?nominal?value

1.73 A

3.24 A

• at?nominal?level?of?the?input?voltage?230?V?nominal?value

0.99 A

1.41 A

• at?nominal?level?of?the?input?voltage?400?V?nominal?value

• at?nominal?level?of?the?input?voltage?500?V?nominal?value

Switch-on?current?limiting?(+25?°C),?max.

45 A

60 A

Duration?of?current?limiting?at?25?°C?typical

I?t,?max.

Built-in?incoming?fuse

T?3,15?A/250?V?(not?accessible)

T?6.3?A/250?V?(not?accessible)

Protection?in?the?mains?power?input?(IEC?898)

Recommended?miniature?circuit?breaker:?from?6?A?characteristic?C

Recommended?miniature?circuit?breaker:?from?10?A?characteristic?C

Output

Output

Controlled,?isolated?DC?voltage

Controlled,?isolated?DC?voltage

Rated?voltage?Vout?DC

12 V

12 V

Total?tolerance,?static?±

3 %

3 %

Static?mains?compensation,?approx.

0.1 %

0.1 %

Static?load?balancing,?approx.

1 %

1 %

Residual?ripple?peak-peak,?max.

150 mV

150 mV

Residual?ripple?peak-peak,?typ.

20 mV

20 mV

Spikes?peak-peak,?max.?(bandwidth:?20?MHz)

240 mV

240 mV

Spikes?peak-peak,?typ.?(bandwidth:?20?MHz)

100 mV

100 mV

Adjustment?range

11.5 … 15.5 V

11.5 … 15.5 V

Product?feature?output?voltage?adjustable

Yes

Yes

Output?voltage?setting

via?potentiometer

via?potentiometer

Note

Status?display

Green?LED?for?12?V?OK

Green?LED?for?12?V?OK

Signaling

Relay?contact?(NO?contact,?rating?60?V?DC/?0.3?A)?for?12?V?OK

Relay?contact?(NO?contact,?rating?60?V?DC/?0.3?A)?for?12?V?OK

On/off?behavior

Overshoot?of?Vout?<?3?%

Overshoot?of?Vout?<?3?%

Startup?delay,?max.

0.3 s

0.3 s

Voltage?rise,?typ.

10 ms

10 ms

Voltage?increase?time?of?the?output?voltage?maximum

Rated?current?value?Iout?rated

7 A

14 A

Current?range

0 … 7 A

0 … 14 A

Note

+50?...?+70?°C:?Derating?0.75%/K

+50?...?+70?°C:?Derating?3.5%/K

delivered?active?power?typ.

84 W

168 W

short-term?overload?current

• at?short-circuit?during?run-up?typical

25 A

40 A

• at?short-circuit?during?operation?typical

25 A

40 A

Duration?of?overloading?ability?for?excess?current

• on?short-circuiting?during?the?start-up

800 ms

800 ms

• on?short-circuiting?during?the?operational?phase

800 ms

800 ms

Parallel?switching?for?enhanced?performance

Yes

Yes

Numbers?of?parallel?switchable?units?for?enhanced?performance

2

2

Efficiency

Efficiency?at?Vout?rated,?Iout?rated,?approx.

84 %

87 %

Power?loss?at?Vout?rated,?Iout?rated,?approx.

15 W

24 W

Closed-loop?control

Dynamic?mains?compensation?(Vin?rated?±15?%),?max.

Dynamic?load?smoothing?(Iout:?50/100/50?%),?Uout?±?typ.

Load?step?setting?time?50?to?100%,?typ.

Load?step?setting?time?100?to?50%,?typ.

Setting?time?maximum

Protection?and?monitoring

?Output?overvoltage?protection

<?20?V

<?20?V

Current?limitation

7 … 8.8 A

14 … 16.4 A

Current?limitation,?typ.

Characteristic?feature?of?the?output?short-circuit?protected

Yes

Yes

Short-circuit?protection

Constant?current?characteristic

Constant?current?characteristic

Enduring?short?circuit?current?Effective?level

• maximum

• typical

8.8 A

16.4 A

• Note

overload?capability?150?%?Iout?rated?up?to?5?s/min

overload?capability?150?%?Iout?rated?up?to?5?s/min

Overload/short-circuit?indicator

-

-

Safety

Primary/secondary?isolation

Yes

Yes

Potential?separation

Safety?extra-low?output?voltage?Uout?acc.?to?EN?60950-1?and?EN?50178

Safety?extra-low?output?voltage?Uout?acc.?to?EN?60950-1?and?EN?50178

Protection?class

Class?I

Class?I

stray?current

• maximum

3.5 mA

3.5 mA

• typical

0.4 mA

0.8 mA

CE?mark

Yes

Yes

UL/CSA?approval

Yes

Yes

UL/cUL?(CSA)?approval

cULus-Listed?(UL?508,?CSA?C22.2?No.?107.1),?File?E197259,?cCSAus?(CSA?C22.2?No.?60950-1,?UL?60950-1,?UL?1604)

cULus-Listed?(UL?508,?CSA?C22.2?No.?107.1),?File?E197259,?cCSAus?(CSA?C22.2?No.?60950-1,?UL?60950-1,?UL?1604)

Explosion?protection

ATEX?(EX)?II?3G?Ex?nA?nC?IIC?T4?Gc;?cCSAus?(CSA?C22.2?No.?213-M1987,?ANSI/ISA-12.12.01-2007)?Class?I,?Div.?2,?Group?ABCD,?T4

ATEX?(EX)?II?3G?Ex?nA?nC?IIC?T4?Gc;?cCSAus?(CSA?C22.2?No.?213-M1987,?ANSI/ISA-12.12.01-2007)?Class?I,?Div.?2,?Group?ABCD,?T4

FM?approval

No

No

FM?approval

-

-

CB?approval

Yes

Yes

Marine?approval

GL

GL

Degree?of?protection?(EN?60529)

IP20

IP20

EMC

Emitted?interference

EN?55022?Class?B

EN?55022?Class?B

Supply?harmonics?limitation

EN?61000-3-2

EN?61000-3-2

Noise?immunity

EN?61000-6-2

EN?61000-6-2

Operating?data

Ambient?temperature

• in?operation

-10 … +70 °C

-10 … +70 °C

• Note

with?natural?convection

with?natural?convection

Ambient?temperature

• on?transport

-40 … +85 °C

-40 … +85 °C

• in?storage

-40 … +85 °C

-40 … +85 °C

Humidity?class?according?to?EN?60721

Climate?class?3K3,?no?condensation

Climate?class?3K3,?no?condensation

Mechanics

Connection?technology

screw-type?terminals

screw-type?terminals

Connections

• ?Supply?input

L,?N,?PE:?1?screw?terminal?each?for?0.5?...?2.5?mm??single-core/finely?stranded

L,?N,?PE:?1?screw?terminal?each?for?0.5?...?2.5?mm??single-core/finely?stranded

• Output

+,?-:?2?screw?terminals?each?for?0.5?...?2.5?mm?

+,?-:?2?screw?terminals?each?for?0.5?...?2.5?mm?

• Auxiliary

Alarm?signals:?2?screw?terminals?for?0.5?...?2.5?mm?

Alarm?signals:?2?screw?terminals?for?0.5?...?2.5?mm?

Width?of?the?housing

50 mm

70 mm

Height?of?the?housing

125 mm

125 mm

Depth?of?the?housing

120 mm

120 mm

Installation?width

50 mm

70 mm

Installation?height

225 mm

225 mm

Weight,?approx.

0.5 kg

0.7 kg

Product?feature?of?the?housing?housing?for?side-by-side?mounting

Yes

Yes

Type?of?mounting

• wall?mounting

No

No

• standard?rail?mounting

Yes

Yes

• S7?rail?mounting

No

No

Installation

Snaps?onto?DIN?rail?EN?60715?35x7.5/15

Snaps?onto?DIN?rail?EN?60715?35x7.5/15

Electrical?accessories

Mechanical?accessories
