IM 155-6PN High Feature interface module, with reference ID label

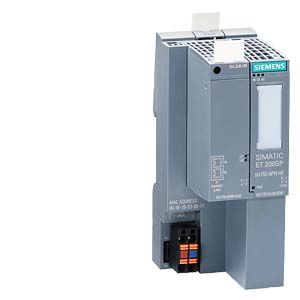

IM 155-6PN HF interface module (High Feature)

• Interface module for linking the ET 200SP station to PROFINET IO
• 24 V DC supply for interface module and backplane bus
• Integrated 2-port switch for line configuration
• Handling of complete data transfer with the controller
• Data exchange with the I/O modules via the backplane bus
• Support of identification data I&M0 to I&M4
• Delivery including server module
• Bus adapters for individual selection of the PROFINET IO connection system can be ordered separately

BusAdapter BA 2xRJ45

BusAdapter BA 2xFC

BusAdapter (BA)

A bus adapter can be used to adapt the universal PROFINET IO interface of the interface module to the specific requirements of the environment of use. The following bus adapters are available:

• BA 2xRJ45
  with two sockets for commercially available RJ45 plugs; suitable for standard applications with moderate mechanical and EMC loading
• BA 2xFC
  with two FastConnect terminals for direct connection of the bus cables; suitable for applications with higher mechanical and/or EMC loading (5?times higher loading through vibrations and EMC interferences)

It is only necessary to replace the bus adapter if a connection socket is faulty or when subsequently changing the connection system.
