Primary differential pressure devices to DIN EN ISO 5167
| |
|
Nominal diameters
|
Nominal pressure
|
 |

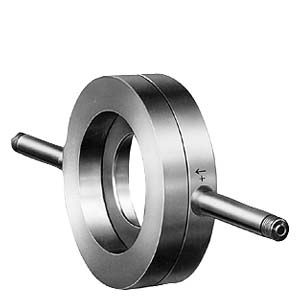

Orifice plates with annular chambers
|
EN:
DN 50 ... DN 1000
ASME:
2 inch … 40 inch
|
EN:
PN 6 ... PN 100
ASME:
Class 150 … 600
|
 |
Orifice plates with single tappings
|
EN:
DN 50 ... DN 500
ASME:
2 inch … 20 inch
|
EN:
PN 6 ... PN 315
ASME:
Class 150 … 2500
|
 |
Metering pipe
|
|
|
- Orifice plate with annular chambers, mounted between flanges
|
EN:
DN 10 ... DN 50
ASME:
? inch … 2 inch
|
EN:
PN 10 ... PN 100
ASME:
Class 150 … 600
|
|
Further products for the complete setup for flow measurements with a primary differential pressure device,
|
|
|
e. g. an orifice plate
|
|
|
+
|
|
|
For compensation vessels (for steam), see SITRANS P measuring instrument for pressure
For threaded flange pairs, see "SITRANS P measuring instruments for pressure".
|
|
|
+
|
|
|
For initial shut-off valves, see "SITRANS P measuring instruments for pressure".
|
|
|
+
|
|
|
For valve manifolds, see "SITRANS P measuring instruments for pressure", e. g.
|
|
|
5-spindle valve manifold or
|
 |
|
Valve manifold combination DN 8 for vapor measurement
|
 |
|
+
|
|
|
For SITRANS P DS III differential pressure transmitter, see SITRANS P measuring instruments for pressure
Measuring cell options:
20, 60, 250, 600 and 1600 mbar
|
 |
|
|
