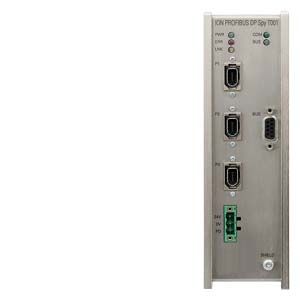

ION PROFIBUS DP SPY T001

Connections

Power supply interface

24 V / 0 V / PD

• Quantity

• Version

3-pin Phoenix Contact terminal block

• Type

Input

• Input voltage

18 ... 32 V DC

• Typ. power loss at 24 V DC

12 W

• Typ. current consumption at 24 V DC

0.5 A

IEEE1394a interfaces

P1 … P3

• Quantity

3

• Version

6-pin socket

• Type

IEEE1394a interface

• Data rate

400 Mbit/s

• Standard

IEEE1394a

Fieldbus interface

BUS

• Quantity

1

• Version

9-pin sub D socket

• Type

PROFIBUS DP Interface

• Data rate

9.6 / 19.2 / 45.45 / 93.75 / 187.5 / 500 Kbit/s
1.5 / 3 / 6 / 12 Mbit/s

• Operating mode

Bus monitor

• Standard

PROFIBUS DP

Permissible cables / cable length

FireWire

In accordance with IEEE1394a standard

PROFIBUS DP

In accordance with PROFIBUS DP standard

Permissible environmental conditions / EMC

Operating temperature

0 ... +55 °C

Storage/transport temperature

-25 ... +85 °C

Relative humidity during operation

5 ... 95 %, non condensing

Radio interference level

EN 55011:2007 (Limit Class A)

Interference immunity

IEC 61000?6?2:2005

Degree of protection

IP20

Constructional design

Dimensions (H x W x D)

200 mm x 60.2 mm x 126.5 mm

Version

Aluminum/stainless steel

Color

Silver

Weight

1 kg

Installation

DIN rail TH 35?15 (thickness 2.3 mm) according to IEC 60715

Approvals

CE

IEC 61000?6?2:2005,
EN 55011:2007
