6GF3420-0AA20
|
6GF3420-0AA40
|
Product-type?designation
|

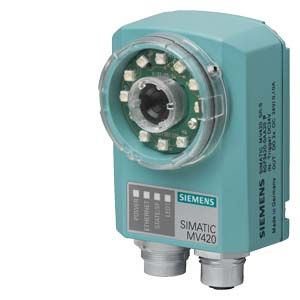

MV420?SR-B?code?reader
|
MV420?SR-P?code?reader
|
Suitability?for?installation
|
1D?codes:?Int.?2/5,?Code?128,?Code?39,?EAN?13,?EAN?8,?UPC-A,?UPC-E,?GS1,?2D?codes:?DMC,?PDF417?(without:?Truncated,?Micro?and?Macro),?QR?(without:?Micro?and?Macro),?Vericode
|
1D?codes:?Int.?2/5,?Code?128,?Code?39,?EAN?13,?EAN?8,?UPC-A,?UPC-E,?GS1,?2D?codes:?DMC,?PDF417?(without:?Truncated,?Micro?and?Macro),?QR?(without:?Micro?and?Macro),?Vericode
|
Interfaces
|
|
|
Design?of?the?electrical?connection?the?Industrial?Ethernet?Interface
|
M12,?d-coded
|
M12,?d-coded
|
Design?of?the?electrical?connection?of?the?PROFIBUS?interface
|
-
|
-
|
Design?of?electrical?connection?of?RS?422?interface
|
M16,?12-pin
|
M16,?12-pin
|
Design?of?electrical?connection?of?RS?232?interface
|
M16,?12-pin
|
M16,?12-pin
|
Design?of?electrical?connection?for?supply?voltage
|
M16,?12-pin
|
M16,?12-pin
|
Design?of?electrical?connection?at?the?digital?inputs/outputs
|
M16,?12-pin
|
M16,?12-pin
|
Number?of?digital?inputs
|
1
|
1
|
Number?of?digital?outputs
|
3
|
3
|
Design?of?digital?inputs
|
One?high-speed?trigger?input
|
One?high-speed?trigger?input
|
Design?of?digital?outputs
|
2?isolated?outputs?50?mA,?1?high-speed?trigger?input?for?external?lighting
|
2?isolated?outputs?50?mA,?1?high-speed?trigger?input?for?external?lighting
|
Optical?data
|
|
|
Design?of?image?sensor?of?camera
|
CMOS?chip,?VGA?(640?x?480),?WVGA?(752?x?480)
|
CMOS?chip,?VGA?(640?x?480),?WVGA?(752?x?480)
|
Type?of?image?capture
|
Global?shutter
|
Global?shutter
|
Range
|
10 … 400 mm
|
10 … 400 mm
|
|
Adjustable?within?the?range
|
Adjustable?within?the?range
|
Mounting?type?of?lens
|
Fixed?(M12)
|
Fixed?(M12)
|
Nature?of?fluorescent?material
|
Integrated?lighting?or?external?lighting?according?to?accessories?list
|
Integrated?lighting?or?external?lighting?according?to?accessories?list
|
Image?acquisition?frequency?maximum
|
50 Hz
|
80 Hz
|
Code?reading?rate?maximum
|
29 1/s
|
50 1/s
|
Type?of?focusing
|
Manual?adjustment?on?the?lens?cover
|
Manual?adjustment?on?the?lens?cover
|
Supply?voltage,?current?consumption,?power?loss
|
|
|
Supply?voltage?for?DC?rated?value
|
24 V
|
24 V
|
Supply?voltage
|
|
|
|
19.2 … 28.8 V
|
19.2 … 28.8 V
|
Consumed?current?At?24?V?with?DC
|
|
|
|
0.17 A
|
0.17 A
|
|
2 A
|
2 A
|
Stored?energy?time?supply?voltage?failure?minimum
|
0.01 s
|
0.01 s
|
Mechanical?data
|
|
|
Material
|
Die-cast?aluminum
|
Die-cast?aluminum
|
Color
|
petrol?blue
|
petrol?blue
|
Permitted?ambient?conditions
|
|
|
Ambient?temperature
|
|
|
|
0 … 50 °C
|
0 … 50 °C
|
|
-30 … +70 °C
|
-30 … +70 °C
|
|
-30 … +70 °C
|
-30 … +70 °C
|
Relative?humidity?at?25?°C?without?condensation?during?operating?maximum
|
95 %
|
95 %
|
Protection?class?IP
|
IP67
|
IP67
|
Resistance?against?shock
|
According?to?IEC?60068-2
|
According?to?IEC?60068-2
|
Resistance?against?shock
|
150 m/s?
|
150 m/s?
|
Resistance?against?vibration
|
10 m/s?
|
10 m/s?
|
Design,?dimensions?and?weight
|
|
|
Width
|
52.5 mm
|
52.5 mm
|
Height
|
70.7 mm
|
70.7 mm
|
Depth
|
39.5 mm
|
39.5 mm
|
Net?weight
|
0.25 kg
|
0.25 kg
|
Mounting?type
|
2?x?M4?screws
|
2?x?M4?screws
|
Product?properties,?functions,?components?general
|
|
|
Product?feature?silicon-free
|
Yes
|
Yes
|
Type?of?display
|
4?LEDs
|
4?LEDs
|
Standards,?specifications,?approvals
|
|
|
Verification?of?suitability
|
CE,?KCC,?F&B?suitable,?UL
|
CE,?KCC,?F&B?suitable,?UL
|
Accessories
|
|
|
Accessories
|
Mounting?brackets,?built-in?ring?lamps,?M12?lenses
|
Mounting?brackets,?built-in?ring?lamps,?M12?lenses
|
