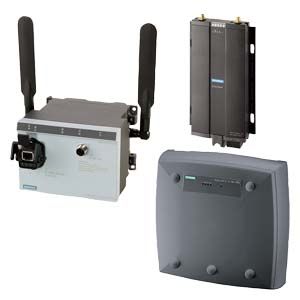

- The Access Points of the SCALANCE W-780 product line are optimized for the configuration of Industrial Wireless LAN (IWLAN) wireless networks for 2.4 GHz or 5 GHz with data transmission rates up to 54 Mbit/s; they can be used in all applications that require a high degree of operational reliability especially under extremely harsh environmental conditions
- Suitable for any application:
- SCALANCE W-788 for cabinet-free assembly
- SCALANCE W-786 for demanding climatic requirements
- SCALANCE W-784 for installation in a cabinet or integration in devices
- Reliable thanks to rugged, impact-resistant housing, protected from water and dust (IP65), resistant to shock, vibration and electromagnetic fields
- Approved for operation in hazardous areas in Zone 2
- Demanding applications with real-time and redundancy requirements, such as PROFINET, PROFIsafe or video
- In conformance with standards as it supports IEEE 802.11;
additional functional expansions with software functions, especially for applications demanding high reliability, e.g. channel hopping procedure (iHOP), cyclic real-time data traffic, and very fast roaming (iPCF)
- Several operating modes in one device:
- Set up of wide area wireless networks (infrastructure) with ranges of up to 30 m indoors and approx. 100 m outdoors
- Point-to-point connection of Industrial Ethernet segments over large distances (several 100 m)
- Support with planning, simulation, configuration, site survey and documentation with the SINEMA E engineering tool, wizards and online help; easy management with Web server and SNMP
- Quick commissioning of Access Points with the optional swap medium PRESET-PLUG and quick device exchange in case of faults with the optional swap medium C-PLUG (Configuration Plug)
|
|
