19“ unit

• With 4 HU for installation
  • in swing frame
  • in cabinets, with or without slide rails
• Front panel for service can be hinged down (laptop connection)
• Internal gas paths: pipe made of stainless steel
• Gas connections for sample gas input and output and for reference gas: stubs, pipe diameter 6 mm or 1/4".

Field unit

• Two-door housing (IP65) with gas-tight separation of analyzer and electronics section
• Sections can be purged separately
• Gas path and pipe couplings made of stainless steel (type No. 1.4571)
• Purging gas connections: pipe diameter 10 mm or 3/8"
• Gas connections for sample gas input and output and for reference gas: clamping ring connection for pipe diameter 6 mm or ¼“.

Display and control panel

• Large LCD panel for simultaneous display of:
  • Measured value (digital and analog displays)
  • Status line
  • Measuring ranges
• Contrast of LCD panel adjustable using menu
• Permanent LED backlighting
• Washable membrane keyboard/front panel with five softkeys
• Menu-based operation for configuration, test functions and calibration
• User help in plain text
• Graphic display of concentration trend; programmable time intervals
• Operating software in two languages: German/English, English/Spanish, French/English, Spanish/English, Italian/English.

Inputs and outputs

• One analog output
• Two analog inputs programmable (e.g. for correction of cross interferences or external pressure sensor)
• Six binary inputs freely configurable (e.g. for range switching, processing external signals from sample conditioning)
• Six relay outputs freely configurable (e.g. for failure, maintenance request, limit alarm, external solenoid valves)
• Extension with eight additional binary inputs and eight additional relay outputs (e.g. for automatic calibration with up to four calibration gases).

Communication

• RS 485 present in basic unit (connection at the rear, with 19“ unit also possibility of connection behind the front plate).

Options

• RS 485/RS 232 converter
• RS 485/Ethernet converter
• Linking to networks via PROFIBUS DP/PA interface
• SIPROM GA software as service and maintenance tool.

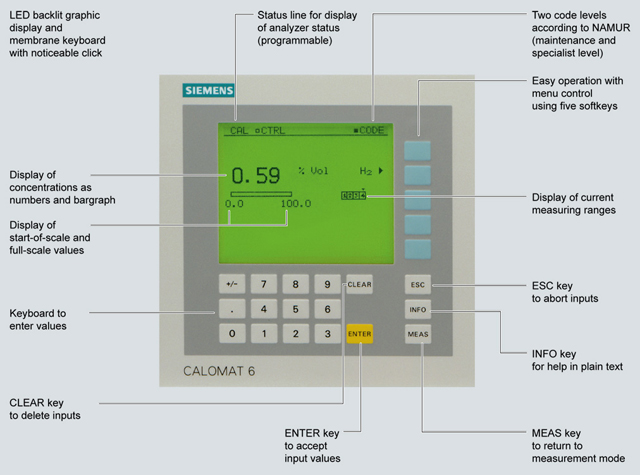

CALOMAT 6, membrane keyboard and graphic display

Versions – Wetted parts

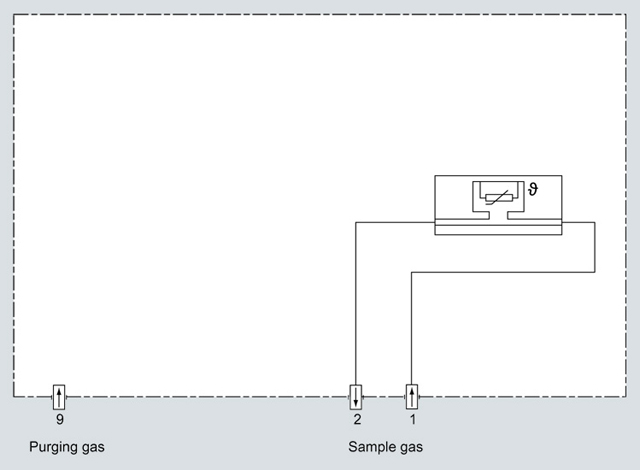

CALOMAT 6, 19“ unit, gas path

CALOMAT 6, field unit, gas path
