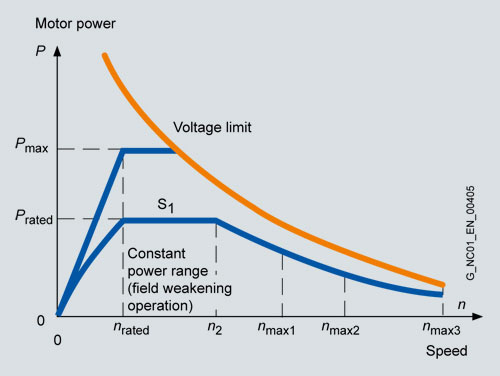

Typical speed/power graph for 1PH8 asynchronous motors1)
The graph shows the typical relationship between motor speed and drive power for 1PH8 motors for S1 duty (continuous duty) in accordance with IEC 60034-1.
Data for S2 short-time duty and S6 continuous duty can be found in the 1PH8 Motors Configuration Manual.
1) For further configuration information, see the 1PH8 Motors Configuration Manual.
