Terminal size 1.5 mm²

8WH3 000-6AE00

8WH3 000-6AE00

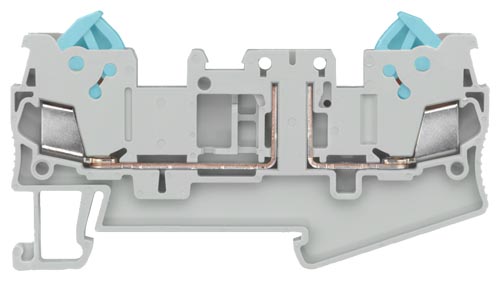

Isolating terminal, terminal size­ 1.5 mm²

• Gray
• Terminal width 5.2 mm
• _CUR_US
• Connection data
  • rigid 0.25 ... 1.5 mm²
  • Flexible 0.25 ... 1.5 mm²
  • AWG 24-16
  • I = 16 A
  • U = 400 V
  • Current and voltage are determined by the plug used
• more information under Technical specifications

8WH3 000-6AE00

Accessories

Section

• Compartment partition for terminal size 1.5 to 2.5 mm² and three connection points

Accessories

8WH9 070-0KA00

• Modular test plug, for terminal width 5.2 mm

Accessories

8WH9 010-0EB02

• Cover plate, for terminal size 1.5 mm² and three connection points

Accessories

8WH9 001-2AA00

• Cover segment, for terminal size­ 1.5 mm² and three or four connection points

Accessories

8WH9 001-0AA00

• Plug-in zone plugs

• Isolating plugs

Accessories

8WH9 040-0DB04

• Through-type connectors

Accessories

8WH9 020-8AB00

• Fused connectors, without LED display

Accessories

8WH9 040-3DB08

• Component connectors

Accessories

8WH9 040-0BB00

Terminal size 2.5 mm²

8WH3 000-6AF00

Isolating terminal, terminal size­ 2.5 mm²

• Gray
• Terminal width 6.2 mm
• Connection data
  • rigid 0.5 ... 2.5 mm²
  • Flexible 0.5 ... 2.5 mm²
  • AWG 20-14
  • I = 16 A
  • U = 400 V
  • Current and voltage are determined by the plug used
• more information under Technical specifications

8WH3 000-6AF00

Accessories

Section

• Compartment partition for terminal size 1.5 to 2.5 mm² and three connection points

Accessories

8WH9 070-0KA00

• Modular test plug, for terminal width 6.2 mm

Accessories

8WH9 010-0FB02

• Cover plate, for terminal size 2.5 mm² and three connection points

Accessories

8WH9 000-2AA00

• Cover segment, for terminal size­ 2.5 mm² and three or four connection points

Accessories

8WH9 000-0AA00

• Plug-in zone plugs

• Isolating plugs

Accessories

8WH9 040-0DB04

• Through-type connectors

Accessories

8WH9 020-8AB00

• Fused connectors, without LED display

Accessories

8WH9 040-3DB08

• Component connectors

Accessories

8WH9 040-0BB00

Accessories

Compartment partition for terminal size 1.5 to 2.5 mm² and three connection points

8WH9 070-0KA00

Modular test plugs

Versions

• For terminal width 5.2 mm

8WH9 010-0EB02

• For terminal width 6.2 mm

8WH9 010-0FB02

Covers

Versions

• For terminal size 1.5 mm² and three clamping points

8WH9 001-2AA00

• For terminal size 2,5 mm² and three clamping points

8WH9 000-2AA00

Cover segments

Versions

• for terminal size 1.5 mm² and three or four connection points

8WH9 001-0AA00

• for terminal size 2.5 mm² and three or four connection points

8WH9 000-0AA00

Plug-in zone plugs

Versions

8WH9 040-0DB04

• Isolating plugs

Orange

8WH9 040-0DB04

8WH9 020-8AB00

• Through-type connectors
  • Gray
  • I_max: 16 A
  • For terminal width 6.2 mm

8WH9 020-8AB00

8WH9 040-3DB08

• Fused connectors, without LED display
  • black
  • I_max: 6.3 A

8WH9 040-3DB08

Note

• The G fuse holders must be selected according to the maximum power loss (self-heating) of the G fuse links. Depending on the application and method of installation, the heating conditions in closed fuse holders must be tested.
• Higher ambient temperatures represent an additional load for the fuse links. Hence in such cases of application it is necessary to allow in addition for adjustment of the rated current.

8WH9 040-0BB00

• Component connectors
  • I_max: 6 A, depending on the loss of power on the component, max. 1 W for stand-alone arrangement
  • facility for inscription with ZBF 5

8WH9 040-0BB00
