Portrait installation kit

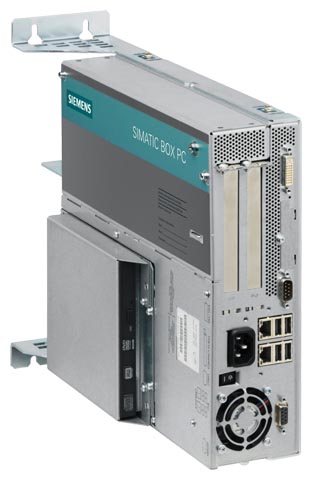

SIMATIC PCS 7 BOX with portrait installation kit, interfaces at front
The portrait installation kit allows space-saving installation in the control cabinet. It is available in two models:
- Kit 1: Portrait assembly with interfaces to the front
- Kit 2: Portrait assembly with interfaces on top or bottom
|
Mounting area required (W x H in mm) |
|
|---|---|
|
298 x 301 |
|
100 x 316 |
|
100 x 392 |
Together with the kit, the SIMATIC PCS 7 BOX OS Client occupies a mounting depth of 365 mm (Kit 1) or 279 mm (Kit 2) in the control cabinet. The limitations associated with portrait assembly regarding vibration and shock resistance are relatively small (see technical specifications).
Since all interfaces are accessible from the front when using Kit 1, this type of assembly is particularly suitable for commissioning and servicing.
Please observe the information on operation planning and device installation in the manual of the SIMATIC IPC627C in conjunction with the use of portrait assembly kits.
