The SIMATIC IPC627C industrial PC serving as a platform for the SIMATIC PCS 7 BOX OS Client 627C, can be used in accordance with its CE marking in industrial environments as well as in domestic, business and commercial environments.
The SIMATIC Box PC based on Intel Core i7 processor technology particularly convinces with the following properties and equipment features:
- Stable platform available for a period of about 3 years with embedded Intel components (spare parts supply and repairs for approx. 5 years)
- Rugged metal enclosure with IP20 degree of protection with high electromagnetic compatibility.
- Alternative design version of panel front: SIMATIC PCS 7 BOX with fixed 19" TFT Touch Panel, resolution 1280 x 1024 (without front-mounted USB interface)
- Flexible installation in various positions with mounting brackets or portrait installation kits
- High shock/vibration resistance in all possible mounting positions
- Variable power supply: 24 V DC or 110/230 V AC
- Maximum processor performance up to an ambient temperature of 55 °C
- Integrated drives:
- 1 x hard disk SATA 3.5"
- 1 x optical drive SATA DVD±R/RW
- Certification for worldwide marketing (cULus)
- Fast restoration of the delivery state with supplied restore DVD
Interfaces
- 4 x USB (2.0/high-speed)
- 1 x COM1 (RS 232)
- 1 x DVI-I port (combined DVI/VGA)
- 2 x Ethernet 10/100/1000 Mbps (RJ45)
- 1 x PCI-Express x16 (175 mm) and 1 x PCI (265 mm), vacant for expansions
Design versions/expandability
With the SIMATIC PCS 7 BOX OS Client 627C in standard design, operation and monitoring are via separate control units (mouse, keyboard, process monitor), which must be additionally ordered. In addition to the mouse and keyboard, two additional input/output devices can be externally connected via the existing USB ports, e.g. 3.5" diskette drive or USB chipcard reader.
A process monitor with analog (VGA) or digital (DVI) connection can be operated at the DVI-I port. The adapter cable required for the analog VGA connection belongs to the scope of delivery of the SIMATIC PCS 7 BOX OS Client 627C.
The selection of the process monitor depends on the technical data of the integrated graphics as well as the image formats and resolutions which are adjustable in the project editor the OS software (see section Operator System, OS Software, Introduction).
The SIMATIC PCS 7 BOX OS Client 627C can also be ordered with Panel Front. The difference compared to the standard design is that a 19" TFT Touch Panel is connected permanently to the SIMATIC Box PC. The 19" TFT Touch Panel supports a resolution of 1280 x 1024 pixels.

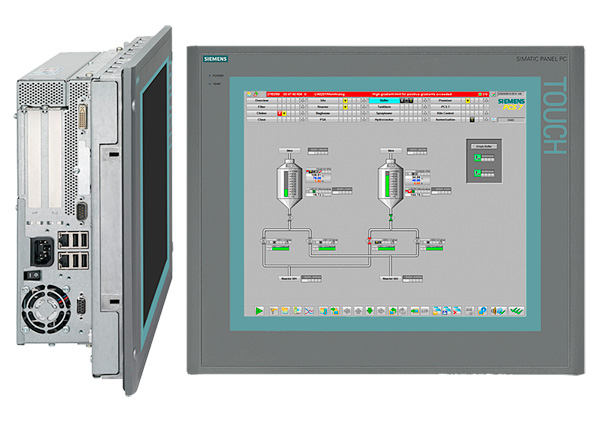

SIMATIC PCS 7 BOX with Panel Front, side and front views
Diagnostics
- Integrated, parameterizable monitoring functions (temperature, fan failure, CMOS battery)
- Integrated diagnostics displays (two 7-segment displays and alarm LEDs in each case)
- SIMATIC IPC DiagMonitor software for enhanced diagnostics functions/messages (e.g. operating hours counter, hard disk status) and logging and evaluation
Preinstalled software
On delivery, the following software is preinstalled on the SIMATIC PCS 7 BOX OS Client 627C:
- Windows XP Professional MUI operating system (German, English, French, Italian, Spanish, Chinese)
- SIMATIC PCS 7 OS Software Client V7.1 incl. SP
- SIMATIC PC DiagMonitor diagnostics software
