Automation solution
The SIMATIC automation system provides a high-quality solution for extruders and extruder lines. It is designed as an open standard. The user can employ the basic functions of the standard, but also add or adapt functions to suit an individual machine configuration.
The SINAMICS drive system and Siemens motors round off the solution perfectly.
SIMATIC EXT 3370 application
- Supports the complete machine control
- Comprises all the technology functions for controlling a pipe/profile extruder Scope of implementation:
- Drive-based control for up to 6 drives
- Temperature control for up to 16 temperature zones
-
Executes on:
- Conventional SIMATIC controller with CPU, or
- Soft PLC SIMATIC controller WinAC, PC-based, or
- Soft PLC SIMATIC controller WinAC, MP-based
- Extended by SIMATIC MP 277 or MP 377 Multipanels in the desired display size
- Prerequisite for using the application SIMATIC EXT 3370 is a software license
Software functions
- Operating screens created with WinCC flexible
- Temperature control
- Self adjustment of control parameters
- Separate controllers for heating and cooling zones
- Integrated multi-zone autotuning
- Heating current monitoring
- Seven-day timer
- Drive control
- Starting function
- Cold start function
- Mass pressure control
- Diagnostics, messages and trend graphs
- Recipe management

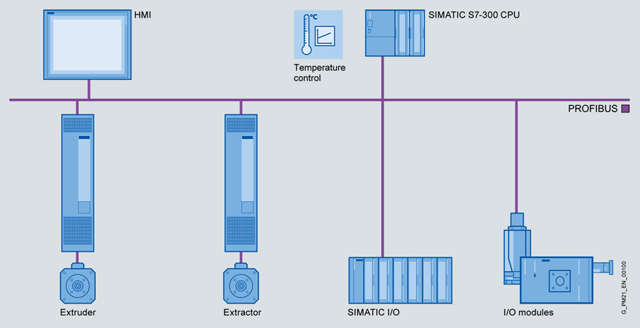

SIMATIC EXT 3370 automation solution
