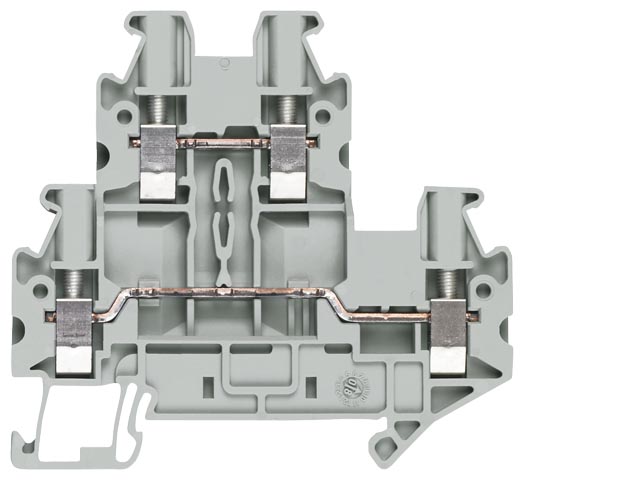

The compact 8WH two-tier terminal is available in the nominal cross-sections 2.5 and 4 mm². With the potentials routed in a 5.2 mm or 6.2 mm grid through two tiers, the compact two-tier terminals require 50 % less space in the control cabinet. Two integral bridge slots are also available here and two facilities for large inscriptions on all terminals.

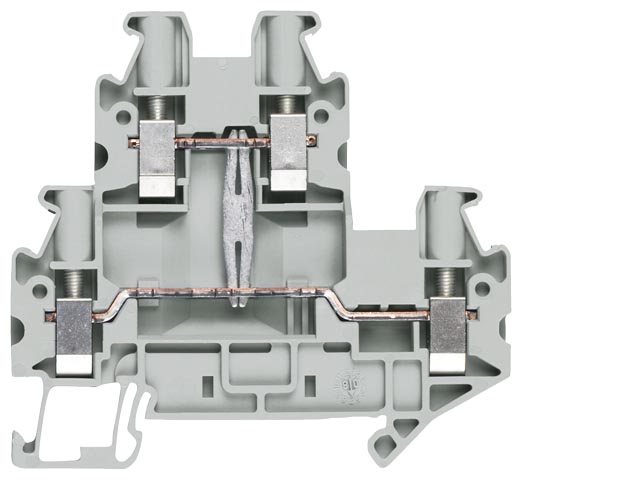

With 8WH1 025 two-tier terminals the upper and lower level are connected.

Floor transfer on the 8WH two-tier terminals allows for open access to the lower levels on full wiring. Spacer plates allow all to compensate for floor transfers in case other terminals are mounted.

	Version			Order No.
Terminal size 2.5 mm
8WH1 020-0AF00 8WH1 025-0AF00	Two-tier terminals, terminal size 2.5 mm _CUR_US CSA Terminal width 5.2 mm I _max = 28 A U _max = 500 V AWG 26-12 Connection capacity, one conductor rigid 0.14... 4 mm Flexible 0.14... 4 mm Connection capacity, two conductors rigid 0.14... 1.5 mm Flexible 0.14... 1.5 mm
	Versions
	Gray
	Without equipotential bonding			8WH1 020-0AF00
	With equipotential bonding			8WH1 025-0AF00
	Blue
	Without equipotential bonding			8WH1 020-0AF01
	Accessories		Section
	Cover, for two-tier terminals, for terminal size 2.5 to 4 mm		Accessories	8WH9 000-1QA00
	Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm		dto.	8WH9 160-0AA00
	Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm		dto.	8WH9 070-6FA00
8WH1 020-0CF07	PE two-tier terminals, terminal size 2.5 mm _CUR_US CSA Terminal width 5.2 mm AWG 26-12 Connection capacity, one conductor rigid 0.14... 4 mm Flexible 0.14... 4 mm Connection capacity, two conductors rigid 0.14... 1.5 mm Flexible 0.14... 1.5 mm Green-yellow			8WH1 020-0CF07
	Accessories	Section
	Cover, for two-tier terminals, for terminal size 2.5 to 4 mm	Accessories		8WH9 000-1QA00
	Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm	dto.		8WH9 160-0AA00
	Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm	dto.		8WH9 070-6FA00
Terminal size 4 mm
8WH1 020-0AG00	Two-tier terminals, terminal size 4 mm _CUR_US CSA Terminal width 6.2 mm I _max = 36 A U _max = 800 V AWG 26-10 Connection capacity, one conductor rigid 0.14... 6 mm Flexible 0.14... 6 mm Connection capacity, two conductors rigid 0.14... 1.5 mm Flexible 0.14... 1.5 mm
	Versions
	Gray
	Without equipotential bonding			8WH1 020-0AG00
	With equipotential bonding			8WH1 025-0AG00
	Blue
	Without equipotential bonding			8WH1 020-0AG01
	Accessories		Section
	Cover, for two-tier terminals, for terminal size 2.5 to 4 mm		Accessories	8WH9 000-1QA00
	Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm		dto.	8WH9 160-0AA00
	Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm		dto.	8WH9 070-6FA00
8WH1 020-0CG07	PE two-tier terminals, terminal size 4 mm _CUR_US CSA Terminal width 6.2 mm AWG 26-10 Connection capacity, one conductor rigid 0.14... 6 mm Flexible 0.14... 6 mm Connection capacity, two conductors rigid 0.14... 1.5 mm Flexible 0.14... 1.5 mm Green-yellow			8WH1 020-0CG07
	Accessories	Section
	Cover, for two-tier terminals, for terminal size 2.5 to 4 mm	Accessories		8WH9 000-1QA00
	Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm	dto.		8WH9 160-0AA00
	Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm	dto.		8WH9 070-6FA00
Accessories

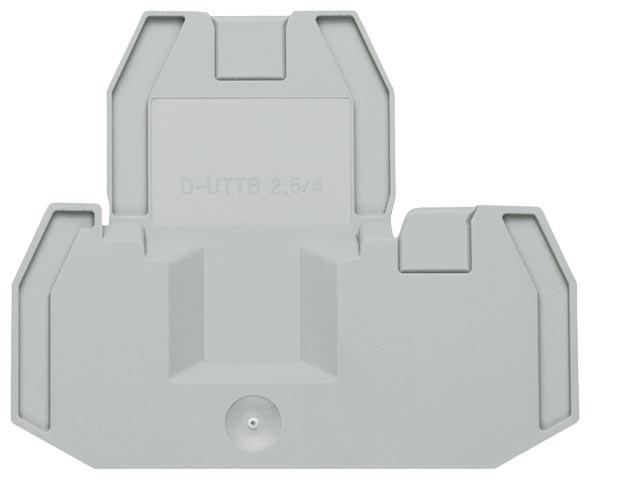

8WH9 000-1QA00	Cover, for two-tier terminals, for terminal size 2.5 to 4 mm Width 2.2 mm Gray			8WH9 000-1QA00
8WH9 160-0AA00	Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm compensates for floor transfers in case other terminals are mounted. 2.5 mm thick. Gray			8WH9 160-0AA00
8WH9 070-6FA00	Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm for visual and electrical separation of terminal groups 2 mm thick. Gray			8WH9 070-6FA00
