The SCALANCE XR-300EEC is ideal for use in plant networks and for integrating the industrial network into an existing corporate network. Both at the field level and the control level, the switch performs the network with the distributed field devices and ensures high plant availability with extensive diagnostics options and high transmission speeds. The modularity permits perfect adaptation to the respective application through the use of electrical and/or optical media modules.
The main area of application is found in high-performance plant networks with interfaces to the corporate network. Thanks to the immunity to electromagnetic interference of the SCALANCE XR-300EEC switches, the devices can also be used in medium/high voltage substations.
The SCALANCE XR-300EEC switch is suitable for establishing optical Industrial Ethernet line, star or ring topologies with 24 ports, 16 of which are integrated RJ45 ports. Up to four electrical and/or optical 2-port media modules can also be inserted in the media module slots of the basic device.
The switch can also be used as a hub in the plant bus (redundant connection is possible).
The use of media modules in partly and fully modular versions of the SCALANCE X-300 switches supports:
- Extension of networks by subsequent insertion of additional media modules in unused media module slots
- Changing of cabling technology, such as conversion from copper to fiber-optic cables, or from multimode to single-mode FOC

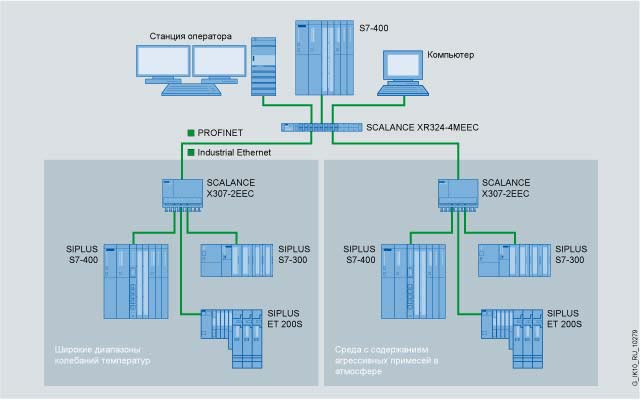

Star structure in switchgear under extreme ambient conditions with SCALANCE XR324-4M EEC and X-300EEC
