Swing frames (standard)

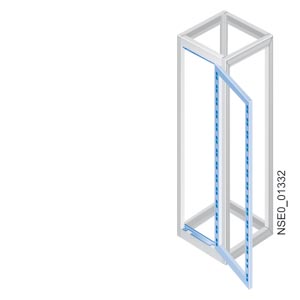

A swing frame comprises welded 19-inch profiles. From a height of 35 modules, it is possible to install devices weighing up to 160 kg. In case of standard installation, the opening angle of the swing frame is 180° and the front row of mounting holes is set back 50 mm from the front edge of the frame. The swing frame is mounted in the cubicle with a set of crossbars and can be fitted either centrally or flush to the left or right side, is each case with the hinging on either the left or the right. The hinging side is switched by rotating the frame and crossbars. If an order contains no specifications as to the mounting position, the swing frame is mounted centrally with left-hand hinges. Its surface is galvanized.
Further swing frame dimensions on request.
