Feet
Feet enable the cubicle to be installed at a slightly raised height.
Height = 100 mm.
Feet are supplied in RAL 7022 (1 set = 4 units)
Transport castors
Please inquire.
Plinths
A plinth increases the floor clearance of the cubicle and simplifies cable entry and routing. Removal of the side cover panels permits cables to be routed between cubicles in an interconnected suite. Plinths are supplied in RAL 7022.

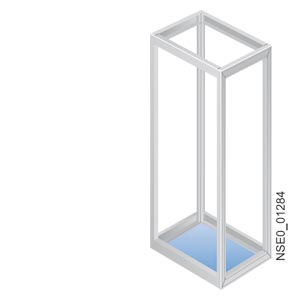

Base plates
If the cubicle is installed on a closed base frame, it achieves degree of protection IP20. The incorporation of a one-piece base plate is able to raise the degree of protection of the cubicle to IP40.
Customer-specific cut-outs (e.g. cable gland threaded joints) permit cable entry from below. Base plates with single or multiple subdivisions possess degree of protection IP40 (without cable entry). If a higher degree of protection is required, it is recommended to incorporate a foam rubber profile.
Further base plate designs, e.g. base plates for cable entry, on request.
Foam rubber profile
Foam rubber 20 mm x 20 mm
Length: 1800 mm
