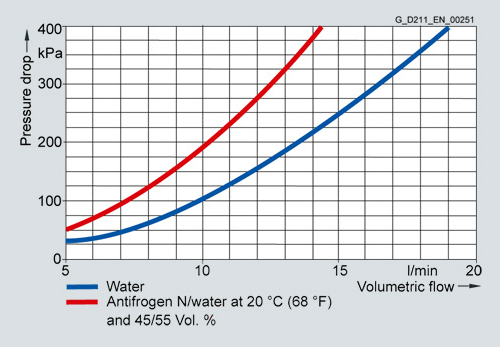

Pressure drop
Pressure loss on frame sizes FSD, FSE, FSF
Overload capability
Load cycle data for liquid-cooled PM340 Power Modules in blocksize format
Load cycle with previous load
Load cycle without previous load
S6 load cycle with previous load with a load cycle period of 600 s
S6 load cycle with previous load with a load cycle period of 60 s
Load cycle with 60 s overload with a load cycle period of 300 s
Load cycle with 30 s overload with a load cycle period of 300 s
Derating factors
Output current dependent on pulse frequency
|
PM340 Power Module in blocksize format |
Rated output current |
Derating factor |
|---|---|---|
|
Type |
A |
for a pulse frequency of 8 kHz |
|
6SL3215-1SE23-8UA0 |
38 |
0.7 |
|
6SL3215-1SE26-0UA0 |
60 |
0.7 |
|
6SL3215-1SE27-5UA0 |
75 |
0.7 |
|
6SL3215-1SE31-0UA0 |
90 |
0.7 |
|
6SL3215-1SE31-1UA0 |
110 |
0.7 |
|
6SL3215-1SE31-8UA0 |
178 |
0.7 |

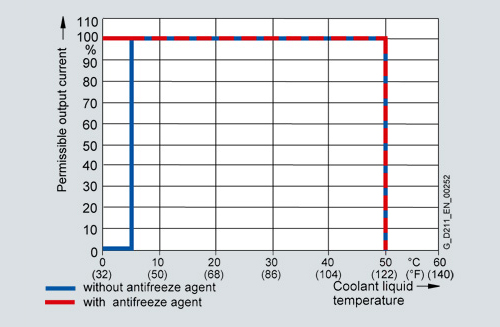

Current derating dependent on temperature of the cooling liquid
Voltage derating dependent on installation altitude
Current derating dependent on ambient temperature
Output current dependent on output frequency
