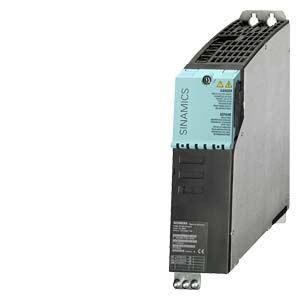

Double Motor Module in booksize compact format

The Double Motor Modules in booksize compact format feature the following connections and interfaces as standard:

• 2 DC link connections via integrated DC link busbars
• 2 electronics power supply connections via integrated 24 V DC bars
• 4 DRIVE?CLiQ sockets
• 2 motor connections via connector
• 2 safe standstill inputs (1 input per axis)
• 2 safe motor brake controls
• 2 temperature sensor inputs (KTY84?130 or PTC)
• 3 PE (protective earth) connections

The status of the Motor Modules is indicated via two multi-color LEDs.

The shield of the motor cables is routed over the connectors to the motor connection.

The signal cable shield can be connected to the Motor Module by means of a shield connection terminal, e.g. Weidmuller type KLBU 3?8 SC.

The scope of supply of the Motor Modules includes:

• DRIVE?CLiQ cable for connecting to the adjacent Motor Module, length 0.16 m (6.3 in)
• 2  blanking plugs for sealing unused DRIVE?CLiQ sockets
• Jumper for connecting the 24 V DC busbar to the adjacent Motor Module
• Connectors X21 and X22
• Connectors X1 and X2 for motor connection
• 1 set of warning signs in 30 languages
• 1 heat conducting foil
