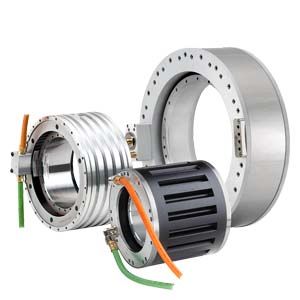

SIMOTICS T-1FW6 built-in torque motors with jacket cooling (left), natural cooling (middle) and with integrated cooling (right)

SIMOTICS T-1FW6 built-in torque motors are liquid-cooled or naturally cooled, multi-pole permanent magnet AC synchronous motors with hollow-shaft rotor. The motors are supplied as built-in components that are held together in the delivered state by transport locks. For a complete drive unit, an additional bearing and shaft encoder are required.

Each frame size is available in different axis lengths. Most stators and rotors are equipped with flanges at each end with centering surfaces and threaded holes for installation in the machine.

Please note that when SIMOTICS T-1FW6 direct motors (torque motors) are used in fork heads for machine tools or robots, a license for US patent US5584621 and the associated international patent protection may be required. Please observe the national and international licensing conditions when using direct motors so that no infringements of industrial property rights occur.
