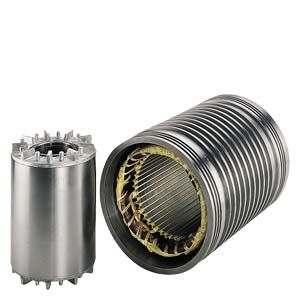

SIMOTICS M-1PH2 built-in motor

Coolant inlet temperature

Because of the formation of condensation, we recommend a coolant inlet temperature of approx. 25 °C (77 °F), depending on the ambient conditions.

Cooling water pressure at inlet, max

7 bar

Coolant flow rate
(water)

8 l/min (2.11 US gallons)

Connecting thread

Dependent on cooler used

Temperature monitoring

2 KTY 84 temperature sensors in the stator winding, 1 as reserve

Insulation of the stator winding
in accordance with EN 60034?1 (IEC 60034?1)

Temperature class 155 (F) for a coolant inlet temperature of up to 25 °C (77 °F)

Motor encoder, recommended

Hollow-shaft measuring system (not included in scope of supply)

Type of construction (cf.ISO)

Individual components: Stator, rotor

Motor connection type

Free cable ends with 0.5 m (19.7 in) or 1.5 m (59.1 in) length

Balance quality of rotor in accordance with ISO 1940?1

1PH2093 to 1PH2118: G 2.5
Reference speed 3600 rpm

Degree of protection
in accordance with IEC 60034?5

IP00

Rating plate

1 unit supplied separately

Approvals, according to

cURus
