Dimensions
|
Floor plates, multipart
|
Base frames H = 100 mm
|

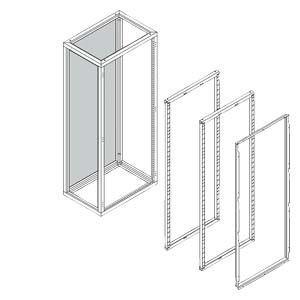

Adapter sets for assembly kits acc. to DIN 43870 (8GK system)
(incl. longitudinal stays 1 ? right and 1 ? left)
|
|
H
|
D
|
B
|
Order No.
|
Order No.
|
Order No.
|
|
mm
|
mm
|
mm
|
|
|
|
|
2000
|
400
|
400
|
8GG3361-0
|
8GG3401-0
|
8GK9400-0KK15
|
|
600
|
8GG3362-0
|
8GG3402-0
|
8GK9400-0KK25
|
|
850
|
8GG3364-0
|
8GG3404-0
|
8GK9400-0KK35
|
|
1100
|
8GG3366-0
|
8GG3406-0
|
8GK9400-0KK45
|
|
600
|
400
|
8GG3361-1
|
8GG3401-1
|
8GK9400-0KK17
|
|
600
|
8GG3362-1
|
8GG3402-1
|
8GK9400-0KK27
|
|
850
|
8GG3364-1
|
8GG3404-1
|
8GK9400-0KK37
|
|
1100
|
8GG3366-1
|
8GG3406-1
|
8GK9400-0KK47
|
| |
 |
 |
 |
|
Dimensions
|
Front doors made of sheet steel
|
Front doors made of glass
|
Side panels
(1 set = 2 side panels), closed: IP55
|
|
H
|
D
|
B
|
Order No.
|
Order No.
|
Order No.
|
|
mm
|
mm
|
mm
|
|
|
|
|
2000
|
400
|
400
|
8GG3004-1
|
8GG3044-2
|
8GG3204-0
|
|
600
|
8GG3004-2
|
8GG3044-3
|
8GG3204-0
|
|
850
|
8GG3004-4
|
8GG3044-4
|
8GG3204-0
|
|
1100
|
8GG3004-6
|
8GG3044-5
|
8GG3204-0
|
|
600
|
400
|
8GG3004-1
|
8GG3044-2
|
8GG3204-1
|
|
600
|
8GG3004-2
|
8GG3044-3
|
8GG3204-1
|
|
850
|
8GG3004-4
|
8GG3044-4
|
8GG3204-1
|
|
1100
|
8GG3004-6
|
8GG3044-5
|
8GG3204-1
|
| |
 |
 |
 |
|
|
