Vertical busbar, cascaded

Characteristics

• For mounting on main busbar, top
• Compatible busbar sections
  30 ? 10
  40 ? 30


Copper bar, profiled busbar

30 ? 10
40 ? 30

Copper bar, flat copper

Configuration

• Number of required reinforcements (1) depends on rated short-time withstand current.

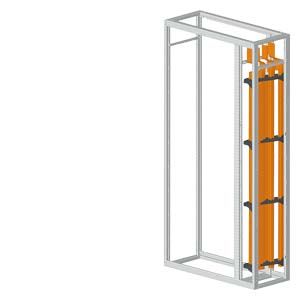

Cascaded vertical distribution busbar system with profiled busbars, single arrangement

Vertical busbar, non-cascaded

Characteristics

• For mounting on main busbar, top
• Compatible busbar sections
  20 ? 10
  30 ? 10
  40 ? 10
  50 ? 10

Copper bar, flat copper

Configuration

• Number of required reinforcements (1) depends on rated short-time withstand current.

Non-cascaded vertical distribution busbar system with rectangular profiles, single arrangement
