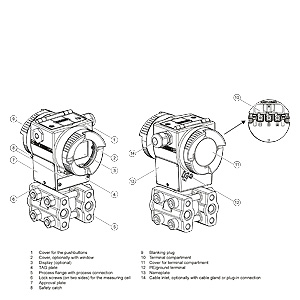

View of transmitter

• The electronics housing is made of die-cast aluminum.
• The casing has round screw-fastened covers front and back.
• Depending on the design the front covers is fitted with an inspection window. You can read off the measured value direclty from the optional digital display through the inspection window.
• The inlet to the electrical junction box is located either on the left or right side. The unused opening in each case is sealed by a blanking plug.
• The PE/ground terminal is on the back of the housing.
• Access electrical junction box for auxiliary power and shielding by unscrewing the cover.
• Beneath the electronic housing is the measuring cell with its process flanges at which the process connections are available. The modular design of the pressure transmitter lets you swap the measuring cell, electronics and connection board as required.
• On the top of the housing you can see the screw fastened cover for the three keys for on-site operation of the transmitter.
